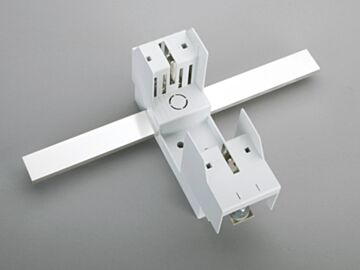

03293 Wohner NH fuse-base 600 A, panel mounting, for PV
MPN: 03293
Alt. SKU: 03293000
Special Price
£142.84
£119.03
Regular Price
£178.55
Why Choose the NH Fuse-Base 600 A, Panel Mounting, for PV (03293)?
The NH fuse-base 600 A is specifically designed for panel mounting applications in photovoltaic (PV) systems. It offers robust and reliable performance with a high rated current of 600 A and a rated voltage of 1500 V DC, ensuring optimal protection for your electrical installations. Its design includes incoming connection screws and outgoing busbar connections, making it ideal for integration into complex electrical panels. Additionally, the fuse-base is halogen-free, contributing to safer and more environmentally friendly installations.
Key Benefits
- Supports one or two internal busbars (40 x 10 mm), allowing flexible electrical configurations.
- Fully shock-protected busbar with a contact cover, enhancing user safety during operation and maintenance.
- Split shock protection design for added safety and ease of handling.
- Compact size (2XL / 3L, 1-pole) suitable for panel mounting with touch protection.
- Halogen-free construction for environmentally responsible installations.
- Complies with type number PVH-NH2XL/3L approval standards.
Technical Specifications
- Item number: 03293
- Description: NH fuse-base 600 A, panel mounting, for PV
- Rated current: 600 A
- Rated voltage DC: 1500 V
- Dimensions (W x H x D): 81 x 265 x 147 mm
- Weight: 110.0 kg/100
- Halogen free: Yes
- Approval: type number: PVH-NH2XL/3L
Frequently Asked Questions
What type of connection does the NH fuse-base use?
The NH fuse-base features an incoming connection screw M10 and outgoing connection to busbar 2x 40 x 10 mm, suitable for secure and reliable electrical connections.
Is the NH fuse-base suitable for photovoltaic systems?
Yes, it is specifically designed for PV applications with a rated DC voltage of 1500 V, making it ideal for solar power installations.
Does the fuse-base carry current itself?
No, the fuse-base is a mechanical component designed to hold the fuse and does not carry current itself.
Is the product environmentally friendly?
Yes, the NH fuse-base is halogen free, supporting environmentally responsible electrical installations.
What safety features are included?
The busbar is fully shock protected by the contact cover, and the shock protection is split into two parts for enhanced safety during handling.
| Manufacturer Part Number | 03293 |
|---|---|
| Barcode | 4021267032937 |
| Height | 265mm |
| Width | 81mm |
| Depth | 147mm |
| Mount Type | Screw-on |
| Country of Manufacture | Germany |
| HS Code | 85351000 |
| Alternative Product SKU | 03293000 |
| Manufacturer | Wohner |
| Packed Quantity | 3 |
| Halogen free | Yes |
| Rated current | 600A |
