03235 Wohner fuse link 175 A
MPN: 03235
Alt. SKU: 03235000
Special Price
£189.12
£157.60
Regular Price
£236.40

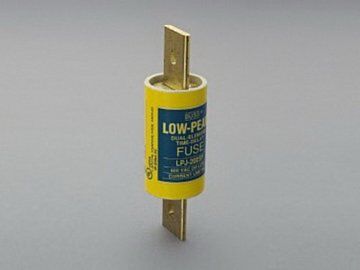

Why Choose the Eaton Fuse Link 175 A (03235)?
The Eaton fuse link 175 A (part number 03235) is a reliable and robust electrical protection device designed for industrial and commercial applications. Manufactured with high-quality porcelain material, this fuse link offers excellent durability and safety. It is halogen-free, ensuring environmentally friendly operation. With a time delay operation and Class J rating, it provides superior protection against overcurrent conditions while allowing temporary surges without nuisance tripping. Certified to stringent UL and CSA standards, it guarantees compliance and peace of mind for your electrical installations.
Key Benefits
- High rated current of 175 A suitable for demanding electrical circuits.
- Rated for 600 V AC and 300 V DC, compatible with various power systems.
- Time delay operation allows temporary overloads without interruption.
- Class J fuse link ensures fast and reliable protection with high interrupting capacity.
- Constructed from durable porcelain material, providing excellent insulation and mechanical strength.
- Halogen-free design promotes safer and environmentally responsible usage.
- Comprehensive approvals including UL 248-8, UL 248-1, and CSA ensure international compliance.
- Compact dimensions (41 x 146 x 41 mm) for easy integration into fuse holders and panels.
Technical Specifications
- Item number: 03235
- Description: fuse link 175 A
- Rated current: 175 A
- Rated voltage AC: 600 V
- Rated voltage DC: 300 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 41 x 146 x 41 mm
- Weight: 35.5 kg/100
- Material: Porcelain
- Halogen free: Yes
- Approval: UL 248-8
- Approval: UL 248-1
- Approval: CSA , UL
- Approval: type number: LPJ
- Approval: UL file: E4273, UL category (for USA): JDDZ https://www.ul.com
- Approval: CSA file: 53787, CSA class: 1422-02 https://directories.csa-international.org
Frequently Asked Questions
What type of protection does the Eaton fuse link provide?
This fuse link offers overcurrent protection with a time delay feature, allowing it to withstand temporary surges without tripping immediately.
Is this fuse link suitable for DC applications?
Yes, it is rated for use up to 300 V DC, making it suitable for both AC and DC circuits.
What does Class J mean for this fuse link?
Class J indicates a fuse with a high interrupting rating and compact size, designed for industrial power distribution and motor protection.
Does the fuse link carry current?
Yes, as an electrical fuse link, it is designed to carry current under normal operating conditions and interrupt current during fault conditions.
Is the fuse link environmentally friendly?
Yes, it is halogen-free, reducing harmful emissions in case of fire and supporting safer disposal.
| Manufacturer Part Number | 03235 |
|---|---|
| Barcode | 4021267032357 |
| Height | 146mm |
| Width | 41mm |
| Depth | 41mm |
| Country of Manufacture | Mexico |
| HS Code | 85361090 |
| Alternative Product SKU | 03235000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Utilization category according to IEC 60269 | Other |
| Release characteristic | J |
