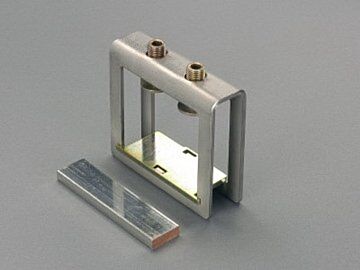

01935 Wohner profile terminal
MPN: 01935
Alt. SKU: 01935000
Special Price
£130.10
£108.42
Regular Price
£162.62
Why Choose the Profile Terminal (01935)?
The Profile Terminal (01935) is engineered for high-performance electrical connections, designed specifically for busbars with a double-T section. It supports a rated current of 1800 A and a rated voltage of 600 V AC, making it suitable for demanding industrial applications. Its halogen-free construction ensures environmental safety and compliance with modern standards. Certified by UL, CSA, and DNV GL, this terminal guarantees reliable and safe operation in various electrical systems.
Key Benefits
- High current capacity of 1800 A for robust electrical performance.
- Compatible with busbars of double-T section, ensuring versatile application.
- Halogen-free material enhances environmental safety and reduces toxic emissions.
- Compact dimensions (132 x 45 x 118 mm) optimise space in electrical assemblies.
- Multiple international approvals including UL 508, CSA, and DNV GL for assured quality and safety.
- Designed for use with the 60Classic centre feed unit system, ensuring seamless integration.
Technical Specifications
- Item number: 01935
- Description: profile terminal
- Rated current: 1800 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 132 x 45 x 118 mm
- Weight: 113.7 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: type number: H101.2
- Approval: UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What type of busbars is the Profile Terminal (01935) compatible with?
It is designed for busbars with a double-T section, providing secure and efficient connections.
Is the Profile Terminal suitable for high current applications?
Yes, it supports a rated current of 1800 A, making it ideal for high current industrial applications.
Does the Profile Terminal carry current?
As an electrical terminal, it is designed to conduct current safely within its rated specifications.
Is the product environmentally friendly?
Yes, it is halogen-free, reducing environmental impact and improving safety in case of fire.
What certifications does this terminal have?
The Profile Terminal holds multiple approvals including UL 508, CSA, and DNV GL, ensuring compliance with international safety standards.
| Manufacturer Part Number | 01935 |
|---|---|
| Barcode | 4021267019358 |
| Height | 45mm |
| Width | 132mm |
| Depth | 118mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01935000 |
| Manufacturer | Wohner |
| Packed Quantity | 3 |
| Max. conductor cross section | 2000 |
| Width clamp | 132mm |
| Max. rated operation current Ie | 1600A |
| Suitable Conductor Connection | Strip Conductor |
