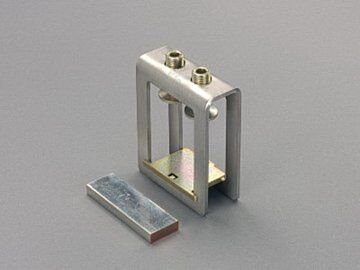

01911 Wohner profile terminal
MPN: 01911
Alt. SKU: 01911000
Special Price
£81.67
£68.06
Regular Price
£102.08
Why Choose the Profile Terminal (01911)?
The Profile Terminal (01911) is designed for reliable and efficient connection in busbar systems with double-T sections. It supports a wide conductor cross-section range from 500 to 1260 mm² and offers a terminal space of 64 x 20-42 mm, making it a versatile solution for various electrical installations. Its robust construction and compliance with multiple international approvals ensure safety and durability in demanding industrial environments.
Key Benefits
- High rated current capacity of 1400 A suitable for heavy-duty applications.
- Rated for 600 V AC and compatible with 50/60 Hz frequency systems.
- Halogen-free material enhances environmental safety and reduces toxic emissions in case of fire.
- Compact dimensions (94 x 45 x 118 mm) allow for efficient space utilisation.
- Comprehensive international approvals including UL 508, CSA, and DNV GL ensure compliance and reliability.
- Designed specifically for busbars with double-T section, ensuring optimal fit and performance.
- Does not carry current mechanically; intended for electrical connection purposes only.
Technical Specifications
- Item number: 01911
- Description: profile terminal
- Rated current: 1400 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 94 x 45 x 118 mm
- Weight: 85.9 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: type number: H64.2
- Approval: UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What is the primary application of the profile terminal (01911)?
It is used for connecting busbars with a double-T section in electrical distribution systems, providing a secure and reliable connection.
Is the profile terminal suitable for high current applications?
Yes, it is rated for a current of up to 1400 A, making it suitable for heavy-duty electrical installations.
Does this terminal carry current mechanically?
No, the profile terminal is a mechanical component designed for electrical connection and does not carry current by itself.
Is the product environmentally friendly?
Yes, it is made from halogen-free materials, reducing environmental impact and enhancing safety in case of fire.
What approvals does this product have?
The profile terminal holds multiple approvals including UL 508, CSA, DNV GL, and specific UL and CSA file certifications.
| Manufacturer Part Number | 01911 |
|---|---|
| Barcode | 4021267019112 |
| Height | 45mm |
| Width | 94mm |
| Depth | 118mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01911000 |
| Manufacturer | Wohner |
| Packed Quantity | 3 |
| Max. conductor cross section | 1260 |
| Width clamp | 94mm |
| Max. rated operation current Ie | 1600A |
| Suitable Conductor Connection | Strip Conductor |
