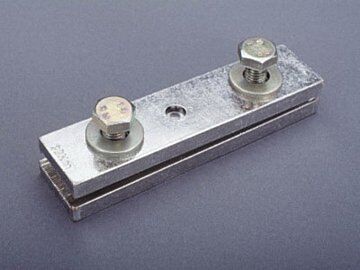

Busbar Connecting Terminal 630 A (01886)

The busbar connecting terminal 630 A (Part No. 01886 000) is a high-quality component designed for reliable electrical connections in busbar systems. Measuring 150 mm in length, it is compatible with busbars sized 20, 25, 30 x 5, and 10 mm. This terminal is part of the 60Classic system and is halogen-free, ensuring safer and environmentally friendly installations.

Why Choose the Busbar Connecting Terminal 630 A?

• High Current Capacity: Rated for a current of 756 A, suitable for demanding electrical applications.
• Robust Construction: Designed to withstand high short-circuit currents up to 65 kA in combination with 30x10-L and any DIVQ/7 800 A / 480 V AC.
• Certified Quality: Holds multiple approvals including UL 508, UL, DNV GL, and is suitable for UL feeder circuits above 250 V.
• Compatibility: Fits a range of busbar sizes, providing flexible integration into existing systems.
• Environmentally Friendly: Halogen-free material reduces environmental impact and enhances safety.

Key Benefits

• Ensures secure and stable electrical connections in busbar systems.
• Supports high electrical loads with excellent short-circuit current rating.
• Facilitates easy installation with standard dimensions and compatibility.
• Complies with international safety and quality standards.
• Durable and reliable for long-term industrial use.

Technical Specifications

• Item number: 01886
• Description: busbar connecting terminal 630 A
• Rated current: 756 A
• Dimensions (W x H x D): 150 x 37 x 25 mm
• Weight: 86.6 kg/100
• Halogen free: Yes
• Approval: UL 508
• Approval: UL , DNV GL
• Approval: for UL feeder circuits >250V
• Approval: type number: LV30-L
• Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
• Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
• Approval: CCC approval: no certification required
