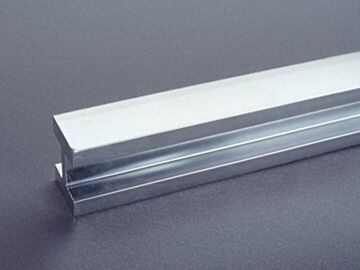

01831 Wohner double-T section busbar 720 mm²
MPN: 01831
Alt. SKU: 01831000
£130.61
£108.84
Why Choose the Double-T Section Busbar 720 mm² (01831)?
The double-T section busbar 720 mm² is crafted from high-quality copper Cu-ETP (No. CW004A) according to EN 13601 standards, ensuring 99.9% copper purity and strength class R300 (300 N/mm²). With a length of 653 mm and tin plating, this busbar offers excellent protection against aggressive media and reduces the effort required for preparing contact points. It is designed for the 60Classic centre feed unit system, making it a reliable and durable choice for your electrical installations.
Key Benefits
- Constructed from high-purity copper for optimal mechanical strength.
- Tin-plated surface reduces corrosion and simplifies contact preparation.
- Halogen-free material enhances environmental safety.
- Compatible with 60Classic centre feed unit system for versatile use.
- Certified approvals including UL 508, CSA, UL, and DNV GL ensure compliance with international standards.
- Mechanical product - does not carry current directly but serves as a robust busbar support.
Technical Specifications
- Item number: 01831
- Description: double-T section busbar 720 mm²
- Dimensions (W x H x D): 653 x 40 x 30 mm
- Weight: 424.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: H720-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What material is the double-T section busbar made from?
The busbar is made from copper Cu-ETP (No. CW004A) with 99.9% copper purity, complying with EN 13601 standards.
Is the busbar suitable for carrying current directly?
This is a mechanical product designed to support busbars and does not carry current directly.
What are the dimensions of the busbar?
The dimensions are 653 mm in length, 40 mm in width, and 30 mm in depth.
Is the busbar environmentally friendly?
Yes, it is halogen-free, which makes it safer for the environment.
What certifications does this busbar have?
It holds multiple approvals including UL 508, CSA, UL, and DNV GL, ensuring compliance with international safety standards.
| Manufacturer Part Number | 01831 |
|---|---|
| Barcode | 4021267018313 |
| Height | 40mm |
| Width | 653mm |
| Depth | 30mm |
| Country of Manufacture | Belgium |
| HS Code | 74071000 |
| Alternative Product SKU | 01831000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Device type | Profile |
