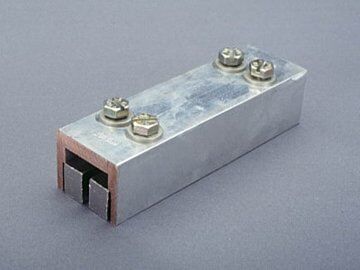

01829 Wohner busbar connecting terminal 1600 A
MPN: 01829
Alt. SKU: 01829000
Special Price
£63.24
£52.70
Regular Price
£79.06
Why Choose the Busbar Connecting Terminal 1600 A (01829)?
The busbar connecting terminal 1600 A (Part No. 01829) is designed for reliable and efficient electrical connections in busbar systems with double-T sections. Its robust construction and UL approvals ensure safety and compliance in demanding industrial environments. The terminal is halogen-free, supporting environmentally responsible installations. With a length of 150 mm and a rated current of 1400 A, it is ideal for high-current applications requiring secure and durable connections.
Key Benefits
- High current rating of 1400 A suitable for heavy-duty electrical systems.
- Compact dimensions (150 x 44 x 43 mm) for space-efficient installations.
- Halogen-free material enhances safety and environmental compliance.
- Multiple UL approvals, including UL 508 and feeder circuits >250V, guarantee quality and regulatory adherence.
- Designed specifically for busbars with double-T sections, ensuring optimal fit and performance.
- Mechanical product that does not carry current itself but provides a secure connection point.
- Comprehensive technical documentation and CAD models available for seamless integration.
Technical Specifications
- Item number: 01829
- Description: busbar connecting terminal 1600 A
- Rated current: 1400 A
- Dimensions (W x H x D): 150 x 44 x 43 mm
- Weight: 146.1 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: LVH-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
What is the rated current of the busbar connecting terminal 01829?
The rated current is 1400 A, suitable for high-current busbar systems.
Is the busbar connecting terminal suitable for all busbar types?
This terminal is specifically designed for busbars with a double-T section to ensure optimal connection performance.
Does this terminal carry current itself?
As a mechanical connecting terminal, it does not carry current itself but provides a secure connection point for busbars.
What approvals does this product have?
It holds multiple UL approvals including UL 508 and certifications for feeder circuits over 250V, ensuring compliance with safety standards.
Is the product environmentally friendly?
Yes, the terminal is halogen-free, supporting safer and more environmentally responsible installations.
| Manufacturer Part Number | 01829 |
|---|---|
| Barcode | 4021267018290 |
| Height | 44mm |
| Width | 150mm |
| Depth | 43mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01829000 |
| Manufacturer | Wohner |
| Packed Quantity | 3 |
| Number of Poles | 1 pole |
| Rated current | 1600A |
