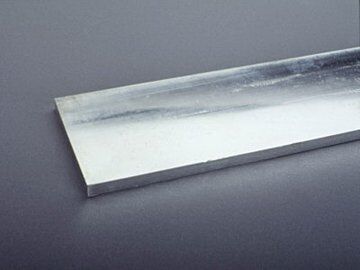

01767 Wohner busbar 120 x 10
MPN: 01767
Alt. SKU: 01767000
£917.17
£764.31
Why Choose the Busbar 120 x 10 (01767)?
The busbar 120 x 10 (Part No.: 01767 000) is crafted from high-purity copper Cu-ETP (No. CW004A) according to EN 13601 standards, ensuring excellent conductivity and durability. With a strength class of R300 (300 N/mm²), this tin-plated busbar offers superior protection against aggressive media, reducing maintenance efforts and enhancing longevity. Its halogen-free composition supports environmentally conscious installations, and comprehensive UL approvals guarantee compliance with stringent safety standards.
Key Benefits
- Constructed from 99.9% pure copper for optimal performance.
- Tin plating significantly reduces preparation effort at contact points.
- Effective protection against corrosive and aggressive environments.
- Halogen-free material supports safer and eco-friendly applications.
- Complies with UL 508 and other UL approvals for feeder circuits above 250V.
- Mechanical product that does not carry current itself, ensuring safe integration.
- Available in a robust size of 2400 x 120 x 10 mm, suitable for various industrial applications.
Technical Specifications
- Item number: 01767
- Description: busbar 120 x 10
- Dimensions (W x H x D): 2400 x 120 x 10 mm
- Weight: 2572.8 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: 120x10-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
What material is the busbar made from?
The busbar is made from copper Cu-ETP (No. CW004A) with 99.9% copper content, complying with EN 13601.
Is the busbar suitable for use in corrosive environments?
Yes, the busbar is tin-plated, which provides effective protection against aggressive media.
Does this busbar carry electrical current?
This is a mechanical product designed for electrical installations but does not carry current itself.
Is the busbar halogen-free?
Yes, the busbar is halogen-free, supporting safer and environmentally friendly installations.
What approvals does this product have?
It holds UL 508 approval, UL certification for feeder circuits above 250V, and specific UL files for USA and Canada. No CCC certification is required.
| Manufacturer Part Number | 01767 |
|---|---|
| Barcode | 4021267017675 |
| Height | 120mm |
| Width | 2400mm |
| Depth | 10mm |
| Country of Manufacture | Belgium |
| HS Code | 74071000 |
| Alternative Product SKU | 01767000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Device type | Flat |
