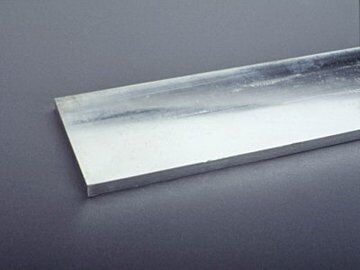

01766 Wohner busbar 100 x 10
MPN: 01766
Alt. SKU: 01766000
£761.82
£634.85
Why Choose the Busbar 100 x 10 (01766)?
The busbar 100 x 10 (Part No.: 01766 000) is crafted from high-purity copper Cu-ETP (No. CW004A) according to EN 13601, ensuring excellent conductivity and durability. With a strength class of R300 (300 N/mm²), this tin-plated copper busbar offers superior mechanical strength and protection against aggressive media. Its tin plating significantly reduces the effort required for preparing contact points, making installation more efficient and reliable. Designed for the 185Power system, it is halogen-free and complies with multiple UL approvals, making it a dependable choice for industrial applications.
Key Benefits
- Manufactured from 99.9% pure copper for optimal performance.
- Tin-plated surface reduces preparation time and enhances corrosion resistance.
- High mechanical strength with strength class R300 (300 N/mm²).
- Halogen-free material ensures environmental safety and compliance.
- Complies with UL 508 and other UL approvals for feeder circuits above 250V.
- Length of 2.40 m and dimensions of 100 x 10 mm suitable for various installations.
- Does not carry current itself as a mechanical product but serves as an essential conductive component.
Technical Specifications
- Item number: 01766
- Description: busbar 100 x 10
- Dimensions (W x H x D): 2400 x 100 x 10 mm
- Weight: 2174.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: 100x10-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
What material is the busbar made from?
The busbar is made from copper Cu-ETP (No. CW004A) with 99.9% copper content, complying with EN 13601 standards.
Is the busbar suitable for high voltage applications?
It is approved for UL feeder circuits above 250V, making it suitable for many industrial electrical applications.
Does the busbar carry current directly?
As a mechanical product, the busbar itself does not carry current but serves as a conductive component within an electrical system.
What are the benefits of the tin plating on the busbar?
The tin plating reduces the effort needed to prepare contact points and provides effective protection against aggressive environmental media.
Is the busbar environmentally friendly?
Yes, it is halogen-free, which supports environmental safety and compliance with modern standards.
| Manufacturer Part Number | 01766 |
|---|---|
| Barcode | 4021267017668 |
| Height | 100mm |
| Width | 2400mm |
| Depth | 10mm |
| Country of Manufacture | Belgium |
| HS Code | 74071000 |
| Alternative Product SKU | 01766000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Number of Poles | 3 Pole |
| Device type | Flat |
