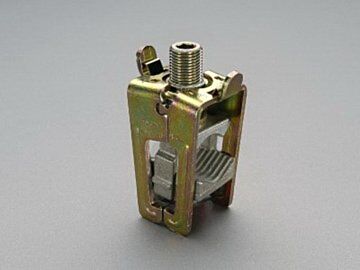

01760 Wohner brace terminal
MPN: 01760
Alt. SKU: 01760000
Special Price
£17.82
£14.85
Regular Price
£22.27
Why Choose the Brace Terminal (01760)?
The brace terminal (01760) is designed for secure and reliable connections in electrical systems, accommodating copper and aluminium conductors from 95 to 300 mm². It is specifically engineered for use with busbars measuring 20, 25, 30 x 5, 10 mm and section busbars, ensuring compatibility with various system configurations including 60Classic, centre feed units, and 100Energy systems. Its halogen-free construction supports environmentally conscious installations, while multiple international approvals guarantee compliance with stringent safety standards.
Key Benefits
- High current rating of 420 A suitable for demanding electrical applications.
- Rated for 600 V AC operation at 50/60 Hz frequency, ensuring versatility.
- Robust mechanical design with dimensions 40 x 49 x 88 mm for easy integration.
- Halogen-free material enhances safety and environmental friendliness.
- Extensive approvals including UL 508, CSA, and DNV GL for global compliance.
- Compatible with various busbar sizes and system types for flexible installation.
- Lightweight design with 42.5 kg per 100 units facilitates handling and transport.
Technical Specifications
- Item number: 01760
- Description: brace terminal
- Rated current: 420 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 40 x 49 x 88 mm
- Weight: 42.5 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: 529
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What materials are compatible with the brace terminal (01760)?
This brace terminal is suitable for copper (Cu) and aluminium (Al) conductors ranging from 95 to 300 mm².
Can this terminal be used with all types of busbars?
It is designed for busbars sized 20, 25, 30 x 5, 10 mm and section busbars, making it compatible with a wide range of busbar systems.
Is the brace terminal suitable for high current applications?
Yes, it supports a rated current of 420 A and is approved for use with UL feeder circuits above 250 V.
Does the brace terminal carry current itself?
The brace terminal is an electrical connection component designed to carry current safely within the specified ratings.
Is the product environmentally friendly?
Yes, it is halogen-free, supporting safer and more environmentally responsible installations.
| Manufacturer Part Number | 01760 |
|---|---|
| Barcode | 4021267017606 |
| Height | 49mm |
| Width | 40mm |
| Depth | 88mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01760000 |
| Manufacturer | Wohner |
| Packed Quantity | 3 |
| Busbar thickness | 10; 10 |
| Max. conductor cross section | 300 |
| Width clamp | 40mm |
| Max. rated operation current Ie | 500A |
| Busbar width | 20; 30 |
| Suitable Conductor Connection | Round Conductor, Sector Conductor |
