01756 Wohner cover cap, 3-pole
MPN: 01756
Alt. SKU: 01756000
Special Price
£18.58
£15.48
Regular Price
£23.22
Why Choose the Cover Cap, 3-pole (01756)?

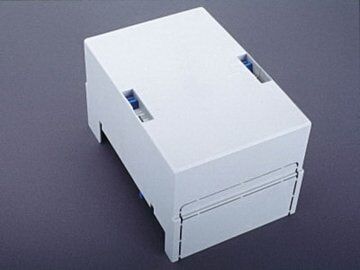

The 3-pole cover cap (Part No. 01756 000) is an essential mechanical component designed to protect and insulate busbars in electrical systems. With dimensions of 135 x 200 x 90 mm and compatibility with various busbar sizes (20, 25, 30 x 5, 10 and section busbars), it ensures a secure fit within the 60Classic system. This cover cap is halogen free, contributing to safer and more environmentally friendly installations. It is approved under multiple certifications including UL 508 and CSA, making it a reliable choice for industrial applications.
Key Benefits
- Robust mechanical protection for 3-pole busbars without carrying current.
- Compatible with a range of busbar sizes, offering versatile application.
- Halogen free material enhances safety and environmental compliance.
- Complies with international standards and approvals such as UL 508, CSA, and DNV GL.
- Designed for use in UL feeder circuits over 250V, ensuring high safety standards.
- Lightweight design at 29.5 kg per 100 units facilitates easy handling and installation.
Technical Specifications
- Item number: 01756
- Description: cover cap, 3-pole
- Dimensions (W x H x D): 135 x 200 x 90 mm
- Weight: 29.5 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: 512-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Does the cover cap carry electrical current?
No, the cover cap is a mechanical component designed solely for protection and insulation; it does not carry electrical current.
What busbar sizes is this cover cap compatible with?
The cover cap fits busbars sized 20, 25, 30 x 5, 10 mm as well as section busbars within the 60Classic system.
Is the cover cap suitable for high voltage applications?
It is approved for use in UL feeder circuits greater than 250V, ensuring it meets safety requirements for such applications.
Is the material halogen free?
Yes, the cover cap is made from halogen free materials, supporting safer and more environmentally responsible installations.
Where can I find technical drawings and CAD models?
Technical information, 3D CAD models, 2D symbols, and dimensioned drawings are available for download from the product's official documentation links.
| Manufacturer Part Number | 01756 |
|---|---|
| Barcode | 4021267017569 |
| Height | 200mm |
| Width | 135mm |
| Depth | 90mm |
| Country of Manufacture | Germany |
| HS Code | 85472000 |
| Alternative Product SKU | 01756000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Accessory Type | Cover |
