01749 Wohner clip-on screw connection, for cable lugs
MPN: 01749
Alt. SKU: 01749000
Special Price
£17.35
£14.46
Regular Price
£21.68
Why Choose the Clip-On Screw Connection for Cable Lugs (01749)?

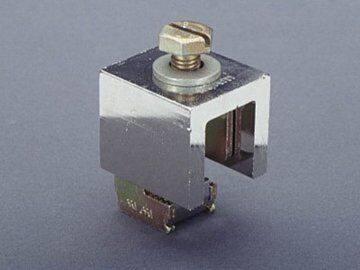

The clip-on screw connection, part number 01749, is designed for secure and reliable fastening of cable lugs to busbars. It is compatible with M10 cable lugs and suitable for flat busbars up to 5 mm thickness. This mechanical component is ideal for use within the 60Classic, centre feed unit, and 100Energy systems, ensuring seamless integration and dependable performance.
Manufactured to meet stringent quality standards, this connection is halogen free, contributing to safer and more environmentally friendly installations. It carries the DNV GL approval and complies with CCC guidelines, although no certification is required. Its robust design and precise dimensions make it a trusted choice for industrial electrical applications.
Key Benefits
- Secure and reliable mechanical connection for cable lugs
- Compatible with M10 cable lugs and flat busbars up to 5 mm
- Halogen free for safer and eco-friendly installations
- Approved by DNV GL and compliant with CCC standards
- Designed for integration with 60Classic, centre feed unit, and 100Energy systems
- Mechanical product – does not carry current
Technical Specifications
- Item number: 01749
- Description: clip-on screw connection, for cable lugs
- Dimensions (W x H x D): 38 x 42 x 47 mm
- Weight: 35.8 kg/100
- Halogen free: Yes
- Approval: DNV GL
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is this clip-on screw connection suitable for carrying electrical current?
No, this is a mechanical product designed for securing cable lugs and does not carry electrical current.
What busbar thickness is compatible with this connection?
It is suitable for flat busbars with a thickness of up to 5 mm.
Is the product halogen free?
Yes, the clip-on screw connection is halogen free, supporting safer and environmentally friendly installations.
Which systems is this connection compatible with?
It is designed for use with the 60Classic, centre feed unit, and 100Energy systems.
What approvals does this product have?
The product is approved by DNV GL and complies with CCC standards, although no certification is required.
| Manufacturer Part Number | 01749 |
|---|---|
| Barcode | 4021267017491 |
| Height | 42mm |
| Width | 38mm |
| Depth | 47mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01749000 |
| Manufacturer | Wohner |
| Packed Quantity | 6 |
| Busbar thickness | 5; 5 |
| Width clamp | 38mm |
| Busbar width | 12; 120 |
