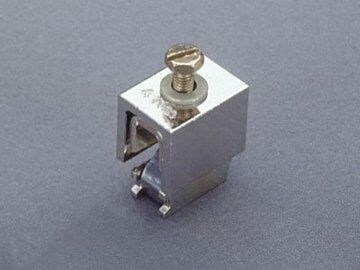

01748 Wohner clip-on screw connection, for cable lugs
MPN: 01748
Alt. SKU: 01748000
Special Price
£14.00
£11.67
Regular Price
£17.50
Why Choose the Clip-On Screw Connection for Cable Lugs (01748)?
The clip-on screw connection (Part No.: 01748 000) is a reliable mechanical solution designed specifically for cable lugs. It is engineered to fit M8 screws and is compatible with flat busbars of 5 mm thickness. Suitable for use in systems such as 60Classic, centre feed unit, and 100Energy, this connection ensures a secure and stable mechanical joint without carrying current itself, making it ideal for various industrial electrical applications.
Key Benefits
- Robust mechanical connection designed for cable lugs with M8 screw compatibility.
- Compatible with flat busbars of 5 mm thickness, ensuring versatile application.
- Halogen-free construction supports environmentally conscious installations.
- Certified by DNV GL and meets requirements without the need for CCC certification.
- Lightweight design with a weight of 16.0 kg per 100 units, facilitating easy handling and installation.
- Mechanical product that does not carry electrical current, ensuring safe and reliable operation.
Technical Specifications
- Item number: 01748
- Description: clip-on screw connection, for cable lugs
- Dimensions (W x H x D): 30 x 32 x 36 mm
- Weight: 16.0 kg/100
- Halogen free: Yes
- Approval: DNV GL
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is this clip-on screw connection suitable for electrical current carrying?
No, this is a mechanical product designed for connecting cable lugs and busbars. It does not carry electrical current itself.
What busbar thickness is compatible with this connection?
The clip-on screw connection is designed for flat busbars with a thickness of 5 mm.
Which systems is this product compatible with?
It is compatible with the 60Classic system, centre feed unit, and 100Energy system.
Is the product environmentally friendly?
Yes, the product is halogen-free, supporting environmentally responsible installations.
Are there any certifications for this product?
The product is approved by DNV GL and does not require CCC certification.
| Manufacturer Part Number | 01748 |
|---|---|
| Barcode | 4021267017484 |
| Height | 32mm |
| Width | 30mm |
| Depth | 36mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01748000 |
| Manufacturer | Wohner |
| Packed Quantity | 20 |
| Busbar thickness | 5; 5 |
| Width clamp | 30mm |
| Busbar width | 12; 120 |
