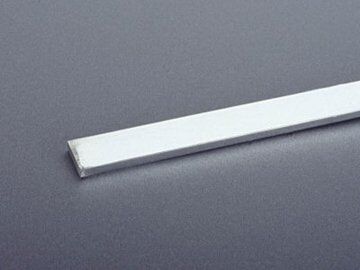

01628 Wohner busbar 60 x 10
MPN: 01628
Alt. SKU: 01628000
£445.63
£371.36
Why Choose the Busbar 60 x 10 (01628)?
The Busbar 60 x 10 (01628) is crafted from high-quality copper Cu-ETP (No. CW004A) according to EN 13601 standards, ensuring 99.9% purity and strength class R300 (300 N/mm²). Its tin-plated surface significantly reduces the effort required to prepare contact points and provides effective protection against aggressive media. Designed for use within the 185Power and 100Energy systems, this busbar offers reliable mechanical performance while being halogen-free and compliant with multiple UL approvals.
Key Benefits
- Manufactured from high-purity copper for excellent mechanical strength.
- Tin plating reduces contact preparation time and protects against corrosion.
- Halogen-free material promotes safer installations.
- Complies with UL 508 and other UL approvals for feeder circuits over 250V.
- Long length of 2.40 m suitable for various electrical system configurations.
- Mechanical product – does not carry current directly but serves as a robust conductor support.
Technical Specifications
- Item number: 01628
- Description: busbar 60 x 10
- Dimensions (W x H x D): 2400 x 60 x 10 mm
- Weight: 1294.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: 60x10-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is this busbar suitable for carrying electrical current?
As a mechanical product, this busbar itself does not carry current directly but serves as a robust conductor support within electrical systems.
What material is the busbar made from?
The busbar is made from copper Cu-ETP (No. CW004A) with 99.9% purity, tin-plated for enhanced protection and ease of contact preparation.
Is the busbar halogen-free?
Yes, the busbar is halogen-free, making it safer for use in various electrical installations.
What approvals does this busbar have?
It holds UL 508 approval, UL certification for feeder circuits above 250V, and complies with relevant UL file categories for both the USA and Canada. No CCC certification is required.
Where can I find technical documentation and CAD models?
Technical information, CAD models in various formats, and conformity declarations are available for download from the manufacturer's website.
| Manufacturer Part Number | 01628 |
|---|---|
| Barcode | 4021267016289 |
| Height | 60mm |
| Width | 2400mm |
| Depth | 10mm |
| Country of Manufacture | Belgium |
| HS Code | 74071000 |
| Alternative Product SKU | 01628000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Device type | Flat |
