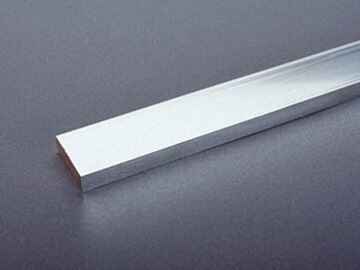

01626 Wohner busbar 40 x 10
MPN: 01626
Alt. SKU: 1626000
£294.07
£245.06
Why Choose the Busbar 40 x 10 (01626)?
The Busbar 40 x 10 (01626) is crafted from high-purity copper Cu-ETP (No. CW004A) in accordance with EN 13601, ensuring excellent conductivity and mechanical strength with a strength class of R300 (300 N/mm²). Its tin-plated surface significantly reduces the effort required to prepare contact points and offers effective protection against aggressive environmental media. Designed for use within the 185Power and 100Energy systems, this busbar is halogen-free and carries multiple UL approvals, making it a reliable and safe choice for your electrical installations.
Key Benefits
- Constructed from 99.9% pure copper for optimal performance.
- Tin plating reduces preparation time and enhances corrosion resistance.
- Halogen-free material supports environmentally responsible installations.
- Complies with multiple UL standards, ensuring safety and reliability.
- Long length of 2.40 m suitable for various applications.
- Mechanical product: does not carry current directly but serves as a robust conductor support.
Technical Specifications
- Item number: 01626
- Description: busbar 40 x 10
- Dimensions (W x H x D): 2400 x 40 x 10 mm
- Weight: 856.8 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: 40x10-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the busbar suitable for carrying electrical current?
This product is a mechanical busbar made from copper and is designed to support electrical connections. While it is a conductor, it is important to note that as a mechanical component, it does not carry current by itself but facilitates current flow within an electrical system.
What are the advantages of the tin plating?
The tin plating on the busbar reduces the effort needed to prepare contact points and provides effective protection against corrosion and aggressive environmental media, thereby extending the product's lifespan.
Is this busbar environmentally friendly?
Yes, the busbar is halogen-free, making it a more environmentally responsible choice for electrical installations.
What approvals does this busbar have?
It holds multiple UL approvals including UL 508 and is certified for UL feeder circuits above 250V. It also complies with UL categories NMTR (USA) and NMTR7 (Canada). No CCC certification is required.
| Manufacturer Part Number | 01626 |
|---|---|
| Barcode | 4021267016265 |
| Height | 40mm |
| Width | 2400mm |
| Depth | 10mm |
| Country of Manufacture | Belgium |
| HS Code | 74071000 |
| Alternative Product SKU | 1626000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
