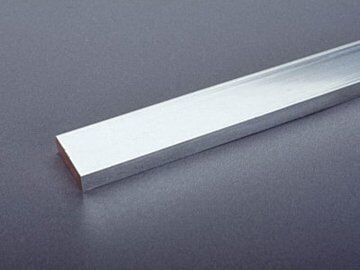

01625 Wohner busbar 30 x 10
MPN: 01625
Alt. SKU: 01625000
£216.29
£180.24
Why Choose the Busbar 30 x 10 (01625)?
The busbar 30 x 10 (Part No.: 01625 000) is crafted from high-quality copper Cu-ETP (No. CW004A) according to EN 13601 standards, ensuring 99.9% copper purity and strength class R300 (300 N/mm²). Its tin-plated surface significantly reduces the effort required to prepare contact points and provides effective protection against aggressive environmental media. Designed for use in systems such as 60Classic, 185Power, centre feed unit, and 100Energy, this busbar is a reliable mechanical component that does not carry current itself but facilitates electrical connections.
Key Benefits
- Made from high-purity copper for excellent conductivity and durability.
- Tin-plated surface reduces preparation time and enhances corrosion resistance.
- Complies with multiple approvals including UL 508, CSA, UL, and DNV GL.
- Suitable for UL feeder circuits above 250V, ensuring safety and compliance.
- Halogen-free material supports environmentally friendly installations.
- Long length of 2.40 m allows for versatile application in various electrical systems.
Technical Specifications
- Item number: 01625
- Description: busbar 30 x 10
- Dimensions (W x H x D): 2400 x 30 x 10 mm
- Weight: 643.2 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: 30x10-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What material is the busbar made from?
The busbar is made from copper Cu-ETP (No. CW004A) with 99.9% copper content, complying with EN 13601 standards.
Is the busbar suitable for carrying electrical current?
This is a mechanical busbar designed to facilitate electrical connections; it does not carry current itself but supports the electrical system.
What are the advantages of the tin plating?
The tin plating reduces the effort needed to prepare contact points and protects the busbar against aggressive environmental media, enhancing durability.
What approvals does this busbar have?
It holds multiple approvals including UL 508, CSA, UL, and DNV GL, and is suitable for UL feeder circuits over 250V.
Is the busbar environmentally friendly?
Yes, it is halogen-free, supporting environmentally responsible installations.
| Manufacturer Part Number | 01625 |
|---|---|
| Barcode | 4021267016258 |
| Height | 30mm |
| Width | 2400mm |
| Depth | 10mm |
| Country of Manufacture | Belgium |
| HS Code | 74071000 |
| Alternative Product SKU | 01625000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Device type | Flat |
