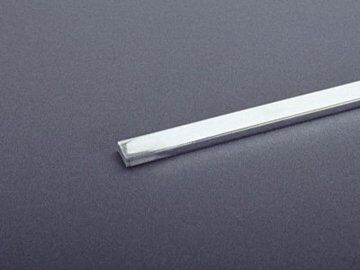

01624 Wohner busbar 20 x 10
MPN: 01624
Alt. SKU: 01624000
£142.85
£119.04
Why Choose the Busbar 20 x 10 (01624)?
The Busbar 20 x 10 (01624) is crafted from high-quality copper Cu-ETP (No. CW004A) in accordance with EN 13601, ensuring 99.9% copper purity and strength class R300 (300 N/mm²). Its tin-plated surface significantly reduces the effort required to prepare contact points and offers effective protection against aggressive media, enhancing durability and reliability in demanding industrial environments. Designed for the 60Classic system, this busbar is halogen free and meets multiple stringent approvals including UL 508, CSA, and DNV GL, making it a dependable choice for your electrical installations.
Key Benefits
- Constructed from high-purity copper for excellent conductivity and mechanical strength.
- Tin plating reduces contact preparation effort and protects against corrosion.
- Complies with multiple international approvals ensuring safety and quality.
- Halogen free material supports environmentally responsible installations.
- Long length of 2.40 m suitable for various busbar applications.
- Mechanical product that does not carry current itself but facilitates electrical connections.
Technical Specifications
- Item number: 01624
- Description: busbar 20 x 10
- Dimensions (W x H x D): 2400 x 20 x 10 mm
- Weight: 428.6 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: 20x10-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What material is the busbar made from?
The busbar is made from copper Cu-ETP (No. CW004A) with 99.9% copper content, complying with EN 13601 standards.
Is the busbar suitable for use in aggressive environments?
Yes, the tin plating on the busbar provides effective protection against aggressive media, enhancing its durability.
Does this busbar carry electrical current?
As a mechanical product, the busbar itself does not carry current but is used to facilitate electrical connections.
Is the busbar environmentally friendly?
Yes, it is halogen free, supporting environmentally responsible installations.
What approvals does this busbar have?
It holds multiple approvals including UL 508, CSA, DNV GL, and is certified for UL feeder circuits over 250V.
| Manufacturer Part Number | 01624 |
|---|---|
| Barcode | 4021267016241 |
| Height | 20mm |
| Width | 2400mm |
| Depth | 10mm |
| Country of Manufacture | Belgium |
| HS Code | 74071000 |
| Alternative Product SKU | 01624000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Device type | Flat |
