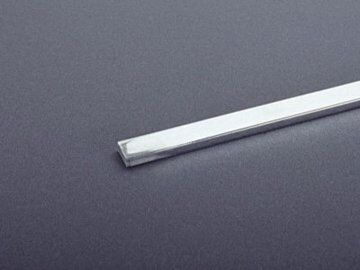

01623 Wohner busbar 12 x 10
MPN: 01623
Alt. SKU: 01623000
£98.22
£81.85
Why Choose the Busbar 12 x 10 (01623)?
The busbar 12 x 10 (Part No.: 01623 000) is crafted from high-purity copper Cu-ETP (No. CW004A) according to EN 13601, ensuring excellent conductivity and mechanical strength with a strength class of R300 (300 N/mm²). Its tin-plated surface significantly reduces the effort required for preparing contact points and provides effective protection against aggressive environmental media. Designed for use in 60Classic and 30Compact 3P systems, this busbar is halogen-free and complies with multiple international approvals, making it a reliable and safe choice for your electrical installations.
Key Benefits
- Manufactured from 99.9% pure copper for superior conductivity.
- Tin-plated surface reduces preparation time and enhances corrosion resistance.
- Suitable for 60Classic and 30Compact 3P systems.
- Halogen-free material supports environmentally friendly installations.
- Complies with UL 508, CSA, UL, and DNV GL approvals for safety and reliability.
- Mechanical product that does not carry current itself but serves as an essential conductor component.
Technical Specifications
- Item number: 01623
- Description: busbar 12 x 10
- Dimensions (W x H x D): 2400 x 12 x 10 mm
- Weight: 257.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: 12x10-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What material is the busbar made from?
The busbar is made from copper Cu-ETP (No. CW004A) with 99.9% copper content, complying with EN 13601 standards.
Is this busbar suitable for use in aggressive environments?
Yes, the tin-plated surface protects the busbar effectively against aggressive media, enhancing its durability.
Does this busbar carry electrical current?
As a mechanical product, the busbar itself does not carry current but serves as a conductor component within electrical systems.
What approvals does this busbar have?
It is approved under UL 508, CSA, UL, and DNV GL standards, suitable for UL feeder circuits over 250V.
Is the busbar environmentally friendly?
Yes, it is halogen-free, supporting environmentally responsible installations.
| Manufacturer Part Number | 01623 |
|---|---|
| Barcode | 4021267016234 |
| Height | 12mm |
| Width | 2400mm |
| Depth | 10mm |
| Country of Manufacture | Belgium |
| HS Code | 74071000 |
| Alternative Product SKU | 01623000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Device type | Flat |
