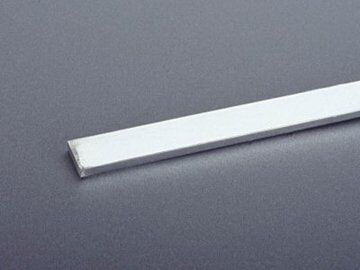

01620 Wohner busbar 20 x 5
MPN: 01620
Alt. SKU: 01620000
£80.36
£66.97
Why Choose the Busbar 20 x 5 (01620)?
The busbar 20 x 5 (01620) is crafted from high-purity copper Cu-ETP (No. CW004A) in accordance with EN 13601 standards, ensuring excellent conductivity and mechanical strength with a class R300 rating. Its tin-plated surface significantly reduces the effort required to prepare contact points and provides effective protection against aggressive environmental media. Designed for the 60Classic system, this busbar is halogen-free and comes with multiple international approvals, making it a reliable and safe choice for your electrical distribution needs.
Key Benefits
- Manufactured from 99.9% pure copper for optimal performance.
- Tin-plated finish reduces preparation time and enhances corrosion resistance.
- Complies with EN 13601 and features strength class R300 for durability.
- Halogen-free material supports environmentally conscious installations.
- Extensive approvals including UL 508, CSA, UL, and DNV GL ensure compliance and safety.
- Suitable for UL feeder circuits over 250V, broadening application scope.
- Long length of 2.40 metres allows for versatile installation configurations.
Technical Specifications
- Item number: 01620
- Description: busbar 20 x 5
- Dimensions (W x H x D): 2400 x 20 x 5 mm
- Weight: 214.4 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: 20x5-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Does this busbar carry electrical current?
Yes, as a copper busbar, it is designed to conduct electrical current efficiently.
What is the advantage of the tin plating on this busbar?
The tin plating reduces the effort needed to prepare contact points and protects the busbar from corrosion and aggressive media.
Is this busbar suitable for environments requiring halogen-free materials?
Yes, the busbar is halogen-free, making it suitable for environmentally sensitive installations.
What approvals does this busbar have?
It holds multiple approvals including UL 508, CSA, UL, and DNV GL, and is certified for UL feeder circuits above 250V.
Where can I find technical drawings and CAD models?
Technical information, CAD models, and dimensioned drawings are available for download from the manufacturer's website.
| Manufacturer Part Number | 01620 |
|---|---|
| Barcode | 4021267016203 |
| Height | 20mm |
| Width | 2400mm |
| Depth | 5mm |
| Country of Manufacture | Belgium |
| HS Code | 74071000 |
| Alternative Product SKU | 01620000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Device type | Flat |
