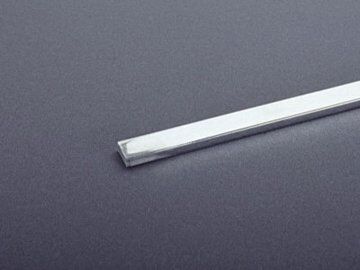

01619 Wohner busbar 15 x 5
MPN: 01619
Alt. SKU: 01619000
£62.50
£52.08
Why Choose the Busbar 15 x 5 (01619)?
The busbar 15 x 5 (01619) is crafted from high-purity copper Cu-ETP (No. CW004A) according to EN 13601, ensuring exceptional conductivity and durability. Its tin-plated surface significantly reduces the effort required to prepare contact points and offers effective protection against aggressive environmental media. Designed as part of the 60Classic system, this busbar meets rigorous quality standards including DNV GL approval, making it a reliable choice for your electrical distribution needs.
Key Benefits
- Manufactured from 99.9% pure copper with strength class R300 (300 N/mm²) for excellent mechanical stability.
- Tin-plated surface enhances corrosion resistance and simplifies contact preparation.
- Halogen-free construction supports environmentally responsible installations.
- Long length of 2.40 m allows flexible application and easy integration into various systems.
- Approved by DNV GL and compliant with type number 15x5 standards, ensuring trusted quality.
- Mechanical product that does not carry current directly but serves as a robust conductor support.
Technical Specifications
- Item number: 01619
- Description: busbar 15 x 5
- Dimensions (W x H x D): 2400 x 15 x 5 mm
- Weight: 160.6 kg/100
- Halogen free: Yes
- Approval: DNV GL
- Approval: type number: 15x5
- Approval: CCC approval: no certification required
Frequently Asked Questions
What material is the busbar made from?
The busbar is made from copper Cu-ETP (No. CW004A) with a purity of 99.9%, complying with EN 13601 standards.
Is the busbar suitable for harsh environments?
Yes, the tin-plated surface protects the busbar effectively against aggressive media, enhancing its durability in challenging conditions.
Does this busbar carry electrical current?
This is a mechanical product designed to support conductors and does not carry current itself.
What approvals does the busbar have?
It is approved by DNV GL and carries the type number 15x5. No CCC certification is required for this product.
Is the busbar environmentally friendly?
Yes, it is halogen-free, supporting safer and more environmentally responsible installations.
| Manufacturer Part Number | 01619 |
|---|---|
| Barcode | 4021267016197 |
| Height | 15mm |
| Width | 2400mm |
| Depth | 5mm |
| Country of Manufacture | Belgium |
| HS Code | 74071000 |
| Alternative Product SKU | 01619000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Device type | Flat |
