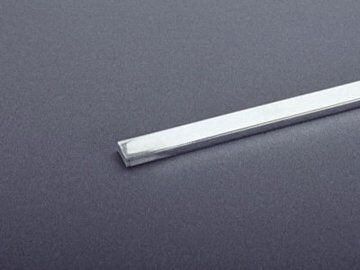

01618 Wohner busbar 12 x 5
MPN: 01618
Alt. SKU: 01618000
£51.32
£42.77
Why Choose Busbar 12 x 5 (01618)?
The busbar 12 x 5 (Part No.: 01618 000) is crafted from high-quality copper Cu-ETP (No. CW004A) according to EN 13601, ensuring 99.9% copper purity with a strength class of R300 (300 N/mm²). Its tin-plated surface significantly reduces the effort required to prepare contact points and provides effective protection against aggressive media. Designed for use in systems such as 60Classic, 30Compact 3P, and 30Compact 5P, this busbar is halogen free and complies with multiple international approvals including UL 508, CSA, and DNV GL.
Key Benefits
- High-purity copper material ensures excellent conductivity and durability.
- Tin plating protects against corrosion and reduces maintenance effort.
- Long length of 2.40 m suitable for various industrial applications.
- Compatible with multiple system types for versatile use.
- Halogen free, supporting environmentally friendly installations.
- Complies with stringent international safety and quality standards.
- Mechanical product – does not carry current itself but serves as a reliable conductor support.
Technical Specifications
- Item number: 01618
- Description: busbar 12 x 5
- Dimensions (W x H x D): 2400 x 12 x 5 mm
- Weight: 128.4 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: 12x5-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is this busbar suitable for carrying electrical current?
As a mechanical product, this busbar does not carry current itself but serves as a reliable conductor support within electrical systems.
What materials are used in the construction of this busbar?
The busbar is made from copper Cu-ETP (No. CW004A) with 99.9% copper purity, tin-plated for enhanced protection.
Is the busbar compatible with multiple system types?
Yes, it is designed for use with 60Classic, 30Compact 3P, and 30Compact 5P systems.
Does this busbar comply with international safety standards?
Yes, it holds approvals including UL 508, CSA, UL, and DNV GL, ensuring compliance with international safety and quality standards.
| Manufacturer Part Number | 01618 |
|---|---|
| Barcode | 4021267016180 |
| Height | 12mm |
| Width | 2400mm |
| Depth | 5mm |
| Country of Manufacture | Belgium |
| HS Code | 74071000 |
| Alternative Product SKU | 01618000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Device type | Flat |
