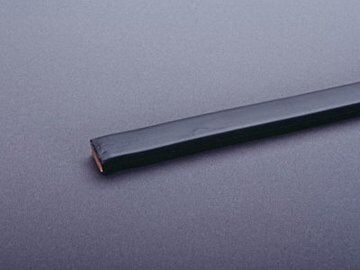

01583 Wohner flexible copper busbar, plain, insulated
MPN: 01583
Alt. SKU: 01583000
£108.10
£90.08
Flexible Copper Busbar, Plain, Insulated (01583)
Part No.: 01583 000
This laminated flexible copper busbar is plain and insulated, designed to simplify electrical connections. Measuring 20 x 12 x 2000 mm, it features a 2 mm thick insulation that eliminates the need for additional covering. Please note, as a mechanical product, it does not carry current itself but facilitates current conduction in your electrical installations.
Why Choose Flexible Copper Busbar 01583?
- Reduces installation effort by eliminating the need for bending devices required for solid copper busbars.
- 2 mm thick insulation provides enhanced safety and eliminates the need for extra covering.
- Halogen-free construction supports environmentally responsible installations.
- Certified with multiple UL approvals ensuring compliance and reliability.
- Durable and flexible design suitable for various industrial applications.
Key Benefits
- Easy to handle and install due to its laminated flexible structure.
- Improved safety with insulated surface preventing accidental contact.
- Compatible with UL feeder circuits over 250V, meeting stringent safety standards.
- Lightweight relative to its size, facilitating easier transportation and installation.
- Halogen-free material reduces toxic emissions in case of fire.
Technical Specifications
- Item number: 01583
- Description: flexible copper busbar, plain, insulated
- Dimensions (W x H x D): 20 x 12 x 2000 mm
- Weight: 232.0 kg/100
- Halogen free: Yes
- Approval: UL 758
- Approval: UL 67
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: 10x15,5x0,8
- Approval: UL file: E197039, UL category (for USA): QEUY2 https://www.ul.com
- Approval: UL file 2: E481423, UL category+ (for USA): AVLV2 https://www.ul.com
- Approval: UL file: E197039, UL category (for Canada): QEUY8 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is this busbar suitable for high current applications?
Yes, the flexible copper busbar is designed for use in high current applications with a rating of 470 A.
Does the insulation require additional covering?
No, the 2 mm thick insulation eliminates the need for any additional covering.
Is this product halogen-free?
Yes, the busbar is halogen-free, supporting safer and more environmentally friendly installations.
Can this busbar be bent during installation?
Yes, its laminated flexible design allows bending without the need for special bending devices.
Does this busbar carry current directly?
As a mechanical component, it does not carry current itself but is used to conduct current within electrical systems.
| Manufacturer Part Number | 01583 |
|---|---|
| Barcode | 4021267015831 |
| Height | 12mm |
| Width | 20mm |
| Depth | 2000mm |
| Country of Manufacture | France |
| HS Code | 85446010 |
| Alternative Product SKU | 01583000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Number of Poles | 3 Pole |
| Device type | Lamellated |
| Rated current In | 510A |
| Flexible | Yes |
