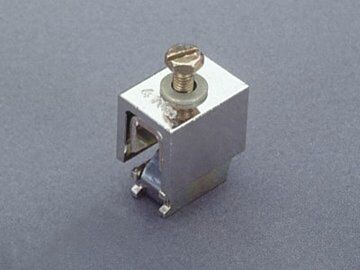

01514 Wohner clip-on screw connection, for cable lugs
MPN: 01514
Alt. SKU: 01514000
Special Price
£11.54
£9.62
Regular Price
£14.44
Why Choose the Clip-On Screw Connection for Cable Lugs (01514)?
The clip-on screw connection, part number 01514, is an essential mechanical component designed specifically for secure and reliable attachment of cable lugs to busbars. Compatible with busbars sized 12, 15, 20, 25, and 30 x 10 mm as well as section busbars, it integrates seamlessly with systems such as 60Classic, centre feed unit, and 100Energy. This product is halogen-free, ensuring environmentally conscious use, and carries the DNV GL approval, reflecting its adherence to stringent quality standards. As a mechanical product, it does not carry current, making it a safe and robust choice for your electrical installation needs.
Key Benefits
- Easy and secure clip-on installation for cable lugs with M8 screw connection.
- Compatible with a wide range of busbar sizes and systems, ensuring versatility.
- Halogen-free construction supports environmentally friendly applications.
- Certified by DNV GL, guaranteeing high quality and reliability.
- Mechanical design ensures no current is carried by the connection itself, enhancing safety.
- Lightweight at 16.5 kg per 100 units, facilitating handling and installation.
Technical Specifications
- Item number: 01514
- Description: clip-on screw connection, for cable lugs
- Dimensions (W x H x D): 30 x 32 x 36 mm
- Weight: 16.5 kg/100
- Halogen free: Yes
- Approval: DNV GL
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the clip-on screw connection suitable for all busbar types?
It is designed for busbars sized 12, 15, 20, 25, and 30 x 10 mm as well as section busbars, ensuring compatibility with a broad range of applications.
Does this product carry electrical current?
No, as a mechanical component, the clip-on screw connection does not carry current. It serves as a secure mechanical attachment point for cable lugs.
Is the product environmentally friendly?
Yes, it is halogen-free, supporting environmentally responsible installations.
What certifications does this product have?
The clip-on screw connection is approved by DNV GL and does not require CCC certification.
Where can I find technical drawings and CAD models?
Technical documents, including CAD models and dimensioned drawings, are available for download from the manufacturer's website.
| Manufacturer Part Number | 01514 |
|---|---|
| Barcode | 4021267015145 |
| Height | 32mm |
| Width | 30mm |
| Depth | 36mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01514000 |
| Manufacturer | Wohner |
| Packed Quantity | 20 |
| Busbar thickness | 10; 10 |
| Width clamp | 30mm |
| Busbar width | 20; 30 |
