01500 Wohner universal busbar support
MPN: 01500
Alt. SKU: 01500000
Special Price
£14.48
£12.07
Regular Price
£18.10

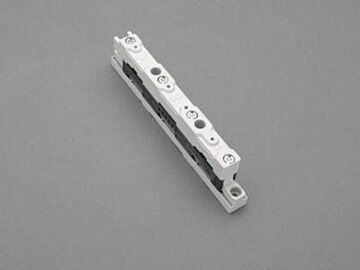

Universal Busbar Support (01500)
The universal busbar support 01500 is a robust mechanical component designed for secure mounting of busbars in electrical systems. It features a 3-pole design with additional external screw holes, allowing flexible installation options including use as a centre support. Compatible with busbars sized 12, 15, 20, 25, and 30 x 5 or 10 mm, this support is part of the reliable 60Classic system.
Why Choose the Universal Busbar Support 01500?
- Versatile 3-pole design with extra external screw holes for enhanced mounting flexibility.
- Compatible with multiple busbar sizes, ensuring broad application across various installations.
- Halogen-free construction promoting safer and more environmentally friendly installations.
- Certified by DNV GL and compliant with type number S610 standards, ensuring high quality and reliability.
- Mechanical product that does not carry current, providing safe and stable physical support for busbars.
Key Benefits
- Additional external screw holes allow use as a centre support, increasing installation options.
- Lightweight design at 13.7 kg per 100 units facilitates easy handling and installation.
- Supports a wide range of busbar dimensions, reducing the need for multiple support types.
- Halogen-free material contributes to safer electrical environments by minimising toxic emissions in case of fire.
- Backed by multiple approvals, ensuring compliance with industry standards and regulations.
Technical Specifications
- Item number: 01500
- Description: universal busbar support
- Dimensions (W x H x D): 20 x 215 x 50 mm
- Weight: 13.7 kg/100
- Halogen free: Yes
- Approval: DNV GL
- Approval: type number: S610
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the universal busbar support 01500 suitable for all busbar sizes?
It is compatible with busbars sized 12, 15, 20, 25, and 30 x 5 or 10 mm, covering a wide range of common sizes.
Can this support be used as a centre support?
Yes, the additional external screw holes allow it to be used as a centre support for enhanced stability.
Does the busbar support carry electrical current?
No, this is a mechanical product designed solely to provide physical support and does not carry current.
Is the product halogen free?
Yes, the universal busbar support 01500 is halogen free, contributing to safer electrical installations.
What certifications does the product have?
It is approved by DNV GL, carries the type number S610, and does not require CCC certification.
| Manufacturer Part Number | 01500 |
|---|---|
| Barcode | 4021267015008 |
| Height | 215mm |
| Width | 20mm |
| Depth | 50mm |
| Country of Manufacture | Germany |
| HS Code | 85469010 |
| Alternative Product SKU | 01500000 |
| Manufacturer | Wohner |
| Packed Quantity | 10 |
| Number of Poles | 3 pole |
| Busbar distance | 60mm |
