01495 Wohner universal busbar support
MPN: 01495
Alt. SKU: 01495000
Special Price
£14.48
£12.07
Regular Price
£18.10
Why Choose the Universal Busbar Support (01495)?

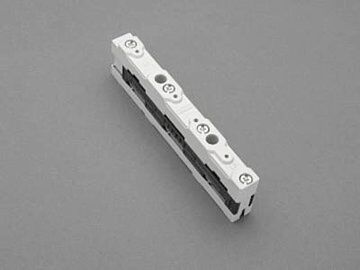

The universal busbar support (Part No.: 01495 000) is designed to provide reliable and versatile support for busbars of various sizes including 12, 15, 20, 25, and 30 mm widths with 5 or 10 mm thickness. Its 3-pole configuration with internal screw holes allows for secure mounting and also enables its use as a centre support, enhancing system stability. Made from halogen-free materials, this mechanical product ensures safety and environmental compliance. It is approved by DNV GL and carries the type number S610, meeting stringent quality standards.
Key Benefits
- Compatible with multiple busbar sizes for flexible installation options.
- Internal screw holes facilitate easy and secure mounting.
- Can be used as a centre support, adding to structural integrity.
- Constructed from halogen-free materials for enhanced safety.
- Mechanical design means it does not carry current, ensuring safe support.
- Certified by DNV GL and meets required approvals without the need for CCC certification.
Technical Specifications
- Item number: 01495
- Description: universal busbar support
- Dimensions (W x H x D): 20 x 191 x 50 mm
- Weight: 12.7 kg/100
- Halogen free: Yes
- Approval: DNV GL
- Approval: type number: S610
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes does this support accommodate?
It supports busbars sized 12, 15, 20, 25, and 30 mm width with 5 or 10 mm thickness.
Can this busbar support carry electrical current?
No, as a mechanical product, it does not carry current. It is designed solely for support purposes.
Is this product halogen free?
Yes, the universal busbar support is made from halogen-free materials.
What certifications does this product have?
It is approved by DNV GL and carries the type number S610. No CCC certification is required.
Can it be used as a centre support?
Yes, the internal screw holes allow it to be used as a centre support for busbar systems.
| Manufacturer Part Number | 01495 |
|---|---|
| Barcode | 4021267014957 |
| Height | 191mm |
| Width | 20mm |
| Depth | 50mm |
| Country of Manufacture | Germany |
| HS Code | 85469010 |
| Alternative Product SKU | 01495000 |
| Manufacturer | Wohner |
| Packed Quantity | 10 |
| Number of Poles | 3 pole |
| Busbar distance | 60mm |
