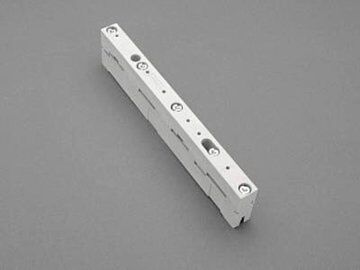

01485 Wohner universal busbar support
MPN: 01485
Alt. SKU: 01485000
Special Price
£20.16
£16.80
Regular Price
£25.20
Why Choose the Universal Busbar Support (01485)?
The universal busbar support (Part No.: 01485 000) is designed to provide reliable mechanical support for busbars in electrical systems. Its 4-pole design with internal screw holes allows flexible installation and can serve as a centre support. The product is compatible with busbars of various sizes including 12, 15, 20, 25, and 30 mm widths with thicknesses of 5 or 10 mm. This busbar support is halogen free, ensuring safer use in environments where fire safety is critical. Certified to multiple international standards such as UL 508, CSA, and DNV GL, it guarantees quality and compliance for industrial applications.
Key Benefits
- 4-pole design with internal screw holes for secure mounting and versatile use.
- Can be used as a centre support, enhancing structural stability of busbar assemblies.
- Allows independent width adjustment of the busbar with the 4th pole, independent of L1, L2, and L3.
- Halogen free material promotes safer installation in fire-sensitive environments.
- Complies with multiple international approvals including UL, CSA, and DNV GL.
- Mechanical product only – does not carry current, ensuring safe and reliable support.
Technical Specifications
- Item number: 01485
- Description: universal busbar support
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 20 x 245 x 51 mm
- Weight: 26.6 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: type number: 485
- Approval: UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the universal busbar support suitable for all busbar sizes?
It supports busbars sized 12, 15, 20, 25, and 30 mm widths with thicknesses of 5 or 10 mm.
Can this busbar support carry electrical current?
No, this is a mechanical support product and does not carry current.
What approvals does the product have?
The product is approved under UL 508, CSA, UL, and DNV GL standards, among others.
Is the product halogen free?
Yes, the universal busbar support is halogen free for safer use in fire-sensitive environments.
Can it be used as a centre support?
Yes, the internal screw holes allow it to be used as a centre support for busbars.
| Manufacturer Part Number | 01485 |
|---|---|
| Barcode | 4021267014858 |
| Height | 245mm |
| Width | 20mm |
| Depth | 51mm |
| Country of Manufacture | Germany |
| HS Code | 85469010 |
| Alternative Product SKU | 01485000 |
| Manufacturer | Wohner |
| Packed Quantity | 10 |
| Number of Poles | 4 pole |
| Busbar distance | 60mm |
