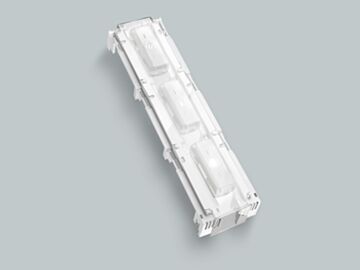

01482 Wohner touch-safe protection shroud for longitudinal connectors
MPN: 01482
Alt. SKU: 01482000A
Special Price
£111.67
£93.06
Regular Price
£139.60
Why Choose the Touch-Safe Protection Shroud 01482?
The 01482 touch-safe protection shroud is engineered to enhance operational safety within Wöhner 185Power assemblies. Designed for longitudinal connectors, it provides reliable protection against accidental contact while maintaining secure mechanical integration.
With a 3-pole configuration and front or rear mounting capability, it offers installation flexibility across multiple busbar dimensions. Manufactured from halogen free material and approved under UL 508 standards, it supports safe installation in feeder circuits above 250 V.
Key Features
- Touch-safe protective design reducing risk of accidental contact.
- 3-pole configuration with front and rear mounting options.
- Compatible busbar sizes: 30, 40, 60, 80, 100 and 120 × 10 mm.
- Mounting: Two busbar supports with 100 mm centre distance.
- Halogen free construction supporting safer installations.
- UL 508 approved including certification for feeder circuits above 250 V.
- Mechanical component that does not carry electrical current.
- CCC: No certification required.
Technical Specifications
- SKU: 01482
- Product Type: Touch-safe protection shroud
- System: Wöhner 185Power
- Dimensions (W × H × D): 115 × 589 × 85 mm
- Weight: 29.5 kg per 100 units
- Material: Halogen free compound
- Compatible Busbars: 30, 40, 60, 80, 100, 120 × 10 mm
- Mounting: Two busbar supports, 100 mm centre distance
- Standards: UL 508
- Feeder Circuit Certification: Suitable for circuits above 250 V
- UL File (USA): E123577 (NMTR)
- UL File (Canada): E123577 (NMTR7)
- CCC: No certification required
Frequently Asked Questions
Does the 01482 protection shroud carry electrical current?
No. The 01482 is a mechanical protective component designed to provide touch-safe coverage. It does not conduct electrical current.
Which busbar sizes are compatible with the 01482?
The shroud is compatible with busbars sized 30, 40, 60, 80, 100 and 120 × 10 mm.
Is the 01482 suitable for UL feeder circuits above 250 V?
Yes. It is approved under UL 508 and certified for use in feeder circuits above 250 V.
How is the protection shroud mounted?
It is mounted to two busbar supports with a centre distance of 100 mm, ensuring stable and secure installation.
Is this product halogen free?
Yes. The halogen free construction supports safer industrial installations and reduces harmful emissions in the event of fire.
| Manufacturer Part Number | 01482 |
|---|---|
| Barcode | 4021267014827 |
| Height | 589mm |
| Width | 115mm |
| Depth | 85mm |
| Country of Manufacture | Germany |
| HS Code | 85472000 |
| Alternative Product SKU | 01482000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Accessory Type | Cover |
| Number of Poles | 3 Pole |
