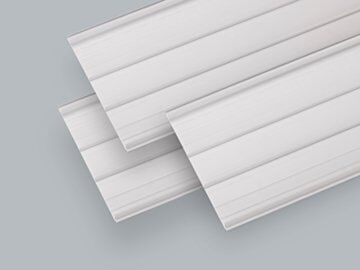

01436 Wohner system shrouding, rear
MPN: 01436
Alt. SKU: 01436000A
Special Price
£131.34
£109.45
Regular Price
£164.18
Why Choose the System Shrouding, Rear (01436)?
The system shrouding, rear (Part No.: 01436 000A) is designed specifically for busbar support with a distance of 700 mm centre to centre. This mechanical component provides essential protection by safeguarding against accidental contact with busbars from behind, enhancing safety in electrical installations. Its halogen-free construction supports environmentally conscious applications, and it carries multiple UL approvals ensuring compliance with rigorous safety standards.
Key Benefits
- Provides reliable protection against accidental contact with busbars from the rear side.
- Designed for busbar support distance of 700 mm (centre to centre), ensuring compatibility with standard systems.
- Halogen-free material promotes safer and more environmentally friendly installations.
- Complies with UL 508 and other UL approvals for feeder circuits above 250V, guaranteeing high safety standards.
- Mechanical product that does not carry current, ensuring safe physical separation.
- Lightweight design with a weight of 110.0 kg per 100 units, facilitating easier handling and installation.
Technical Specifications
- Item number: 01436
- Description: system shrouding, rear
- Dimensions (W x H x D): 673 x 194 x 11.5 mm
- Weight: 110.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: 01436000A
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
What is the primary function of the system shrouding, rear?
It safeguards against accidental contact with busbars from behind, enhancing safety in electrical installations.
Is this product suitable for carrying electrical current?
No, this is a mechanical product designed for protection and does not carry current.
What busbar support distance is this shrouding designed for?
It is designed for a busbar support distance of 700 mm centre to centre.
Is the product environmentally friendly?
Yes, it is halogen free, supporting safer and more environmentally conscious installations.
What certifications does this product have?
It holds UL 508 approval and other UL certifications for feeder circuits above 250V, with no CCC certification required.
| Manufacturer Part Number | 01436 |
|---|---|
| Barcode | 4021267014360 |
| Height | 194mm |
| Width | 673mm |
| Depth | 11.5mm |
| Country of Manufacture | Germany |
| HS Code | 85472000 |
| Alternative Product SKU | 01436000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Accessory Type | Cover |
| Number of Poles | 1 Pole |
