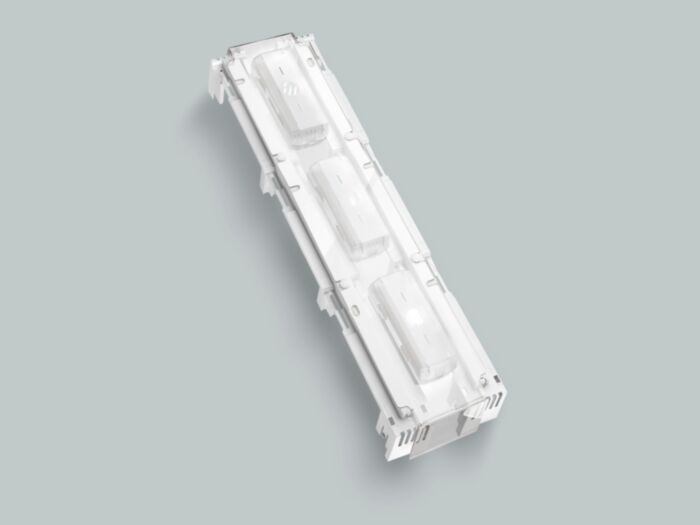

01416 Wohner touch-safe protection shroud for longitudinal connectors
MPN: 01416
Alt. SKU: 01416000A
Special Price
£136.69
£113.91
Regular Price
£170.87
Why Choose the Touch-Safe Protection Shroud for Longitudinal Connectors (01416)?
The touch-safe protection shroud (Part No. 01416 000A) is specifically designed to enhance safety and reliability in electrical installations involving longitudinal connectors. Its 3-pole configuration with front and rear mounting options ensures versatile application. The shroud fits busbars ranging from 30 to 120 x 10 mm and mounts securely to busbar supports with a 150 mm centre distance, providing robust mechanical protection without carrying current itself. Made from halogen-free materials, it supports environmentally responsible installations within the 185Power system.
Key Benefits
- Ensures touch-safe protection for longitudinal connectors, reducing risk of accidental contact.
- Compatible with a wide range of busbar sizes (30, 40, 60, 80, 100, 120 x 10 mm).
- Flexible mounting options with front and rear installation on busbar supports.
- Constructed from halogen-free materials for safer, eco-friendly use.
- Lightweight design at 45.0 kg per 100 units facilitates handling and installation.
- Mechanical product that does not carry current, providing physical protection only.
- Certified with type number C185-C and does not require CCC certification.
Technical Specifications
- Item number: 01416
- Description: touch-safe protection shroud for longitudinal connectors
- Dimensions (W x H x D): 165 x 589 x 85 mm
- Weight: 45.0 kg/100
- Halogen free: Yes
- Approval: type number: C185-C
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the protection shroud suitable for all busbar sizes?
It is compatible with busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm.
Does the shroud carry electrical current?
No, this is a mechanical product designed solely for protection and does not carry current.
What mounting options are available?
The shroud supports both front and rear mounting on busbar supports with a centre distance of 150 mm.
Is the material environmentally friendly?
Yes, the shroud is made from halogen-free materials.
Are there any certifications for this product?
It holds the type number C185-C approval and does not require CCC certification.
| Manufacturer Part Number | 01416 |
|---|---|
| Barcode | 4021267014162 |
| Height | 589mm |
| Width | 165mm |
| Depth | 85mm |
| Country of Manufacture | Germany |
| HS Code | 85472000 |
| Alternative Product SKU | 01416000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Accessory Type | Cover |
