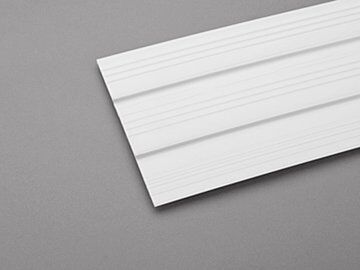

01371 Wohner base plate
MPN: 01371
Alt. SKU: 01371000
Special Price
£28.13
£23.44
Regular Price
£35.16
Why Choose the Base Plate (01371)?
The base plate (Part No.: 01371 000) is an essential mechanical component designed for the 30Compact 3P and 30Compact 5P systems. Crafted to provide a stable and reliable foundation, this base plate ensures optimal support for your electrical installations. Its halogen-free construction aligns with modern safety and environmental standards, making it a responsible choice for industrial applications.
Key Benefits
- Robust mechanical support for busbar systems without carrying current.
- Compatible with 30Compact 3P and 5P systems, ensuring seamless integration.
- Halogen-free material enhances safety and environmental compliance.
- Lightweight design at 26.7 kg per 100 units facilitates handling and installation.
- Dimensions of 700 x 160 x 4 mm provide a broad and stable mounting surface.
- CCC approval not required, simplifying compliance and procurement processes.
Technical Specifications
- Item number: 01371
- Description: base plate
- Dimensions (W x H x D): 700 x 160 x 4 mm
- Weight: 26.7 kg/100
- Halogen free: Yes
- Approval: CCC approval: no certification required
Frequently Asked Questions
Does the base plate carry electrical current?
No, the base plate is a mechanical component and does not carry electrical current. It serves as a support structure for busbars and other system components.
Is the base plate compatible with other systems besides 30Compact?
This base plate is specifically designed for the 30Compact 3P and 5P systems. Compatibility with other systems is not guaranteed.
What materials is the base plate made from?
The exact material is not specified, but the base plate is halogen-free, ensuring safer use in electrical installations.
Are there CAD files available for design integration?
Yes, CAD models in 3D PDF, 3D STP, and 2D DXF formats are available for download to assist with design and planning.
| Manufacturer Part Number | 01371 |
|---|---|
| Barcode | 4021267013714 |
| Height | 160mm |
| Width | 700mm |
| Depth | 4mm |
| Country of Manufacture | Germany |
| HS Code | 85472000 |
| Alternative Product SKU | 01371000 |
| Manufacturer | Wohner |
| Packed Quantity | 2 |
| Accessory Type | Cover |
