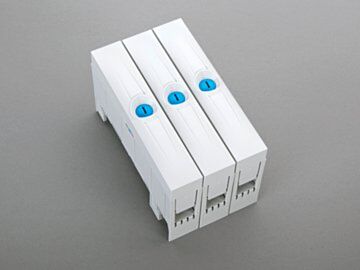

01370 Wohner connection set, 3-pole L1 + L2 + L3
MPN: 01370
Alt. SKU: 01370000
Special Price
£60.20
£50.17
Regular Price
£75.25
Why Choose the Connection Set, 3-pole L1 + L2 + L3 (01370)?
This connection set is designed for reliable and efficient electrical connections in three-phase systems. Suitable for busbars sized 12 x 5 and 10, it supports conductors from 10 to 120 mm², ensuring versatility across various applications. The product is UL certified, meeting rigorous safety and quality standards for use in feeder circuits above 250V. Its robust construction and compatibility with the 30Compact system make it an ideal choice for industrial electrical installations.
Key Benefits
- Supports high rated current of 200 A and voltage up to 600 V AC, suitable for demanding electrical environments.
- Compatible with 30Compact 3P and 5P systems, providing flexibility in system design.
- UL 508 and UL approvals ensure compliance with North American safety standards.
- Designed for busbars 12 x 5 and 10, accommodating a wide range of conductor sizes from 10 to 120 mm².
- Compact dimensions (90 x 160 x 80 mm) allow for space-efficient installation.
- Robust mechanical design ensures durability and long service life.
Technical Specifications
- Item number: 01370
- Description: connection set, 3-pole L1 + L2 + L3
- Rated current: 200 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 90 x 160 x 80 mm
- Weight: 60.0 kg/100
- Halogen free: No
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: M120-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
What conductor sizes does this connection set support?
The connection set supports conductor sizes ranging from 10 to 120 mm².
Is this connection set suitable for three-phase systems?
Yes, it is a 3-pole connection set designed for L1, L2, and L3 phases in three-phase electrical systems.
Does this product carry current?
Yes, this is an electrical connection set designed to carry current up to 200 A.
Is the product halogen free?
No, this connection set is not halogen free.
What approvals does this connection set have?
It is UL 508 and UL approved, suitable for UL feeder circuits above 250V, with specific UL file numbers for USA and Canada.
| Manufacturer Part Number | 01370 |
|---|---|
| Barcode | 4021267013707 |
| Height | 160mm |
| Width | 90mm |
| Depth | 80mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01370000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar thickness | 5; 10 |
| Max. conductor cross section | 150 |
| Width clamp | 90mm |
| Max. rated operation current Ie | 250A |
| Busbar width | 12; 12 |
