01357 Wohner universal busbar support UL
MPN: 01357
Alt. SKU: 01357000
Special Price
£26.95
£22.46
Regular Price
£33.68

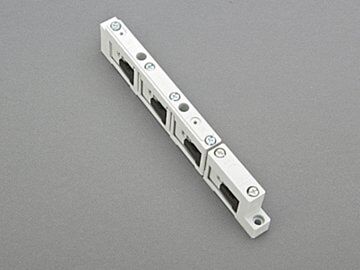

Universal Busbar Support UL (01357)
The universal busbar support UL (Part No. 01357 000) is a reliable mechanical component designed for secure mounting and support of busbars within electrical systems. Suitable for busbars sized 12, 20, 30 x 5, 10, this 4-pole support features internal screw holes allowing versatile installation options, including use as a centre support. It is part of the 60Classic system and complies with multiple international approvals ensuring quality and safety.
Why Choose the Universal Busbar Support UL?
- Designed for flexible installation with internal screw holes
- Compatible with a range of busbar sizes for versatile applications
- Halogen-free construction for enhanced environmental safety
- Complies with UL 508 and DNV GL approvals for assured quality
- Suitable for UL feeder circuits above 250V
- Robust mechanical support without carrying electrical current
Key Benefits
- Ensures stable and secure mounting of busbars in electrical panels
- Internal screw holes allow easy and flexible installation configurations
- Lightweight design with a weight of 19.7 kg per 100 units facilitating handling
- Halogen-free material reduces environmental impact and improves safety
- Wide approval range supports compliance with international standards
- Mechanical product – does not carry electrical current, ensuring safe support
Technical Specifications
- Item number: 01357
- Description: universal busbar support UL
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 21 x 272 x 51 mm
- Weight: 19.7 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: S62015-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes does this support accommodate?
The universal busbar support UL is designed for busbars sized 12, 20, 30 x 5, 10 mm.
Can this busbar support carry electrical current?
No, this is a mechanical support and does not carry electrical current.
Is the product halogen free?
Yes, the busbar support is halogen free, ensuring safer use and environmental compliance.
What approvals does this product have?
It holds UL 508, UL and DNV GL approvals, suitable for UL feeder circuits above 250V, among others.
Are there CAD models available for this product?
Yes, 3D PDF, 3D STP, and 2D DXF CAD models are available for download.
| Manufacturer Part Number | 01357 |
|---|---|
| Barcode | 4021267013578 |
| Height | 272mm |
| Width | 21mm |
| Depth | 51mm |
| Country of Manufacture | Germany |
| HS Code | 85469010 |
| Alternative Product SKU | 01357000 |
| Manufacturer | Wohner |
| Packed Quantity | 10 |
| Number of Poles | 4 pole |
| Busbar distance | 60mm |
