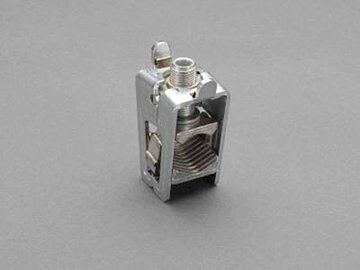

01318 Wohner brace terminal
MPN: 01318
Alt. SKU: 01318000
Special Price
£12.78
£10.65
Regular Price
£15.98
Why Choose the Brace Terminal (01318)?
The brace terminal 01318 is designed for reliable and secure connections in electrical systems, suitable for copper and aluminium conductors ranging from 95 to 185 mm². It is compatible with busbars of various sizes including 20, 25, 30 x 5, 10 mm and section busbars, making it versatile for multiple applications. The terminal features captive clamp screws to ensure ease of installation and safety, with conductor overlap capability for enhanced connection integrity. Additionally, it provides clear indication of nominal cross-section and tightening torque directly on the terminal, facilitating correct installation and maintenance.
Key Benefits
- Supports rated current up to 310 A and rated voltage of 600 V AC, suitable for demanding electrical environments.
- Halogen-free construction promotes safety and environmental compliance.
- Captive clamp screws prevent loss during installation and ensure secure fastening.
- Clear markings for nominal cross-section and tightening torque improve installation accuracy.
- Designed for use with multiple busbar sizes and systems including 60Classic, centre feed unit, and 100Energy.
- Approved by UL 508, UL, DNV GL, and carries relevant certification numbers, ensuring compliance with international standards.
- Mechanical product that does not carry current directly but facilitates safe and efficient electrical connections.
Technical Specifications
- Item number: 01318
- Description: brace terminal
- Rated current: 310 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 38 x 51 x 70 mm
- Weight: 31.2 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL , DNV GL
- Approval: type number: 518
- Approval: UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
What conductor sizes are compatible with the brace terminal 01318?
The brace terminal supports copper and aluminium conductors from 95 to 185 mm², providing flexibility for various wiring requirements.
Is the brace terminal suitable for direct current (DC) applications?
The terminal is rated for an AC voltage of 600 V and frequency of 50/60 Hz. There is no specified DC voltage rating, so it is recommended to use it within its AC rating specifications.
Does the brace terminal carry current directly?
No, the brace terminal is a mechanical component designed to facilitate secure connections between conductors and busbars. It does not carry current itself but ensures reliable electrical contact.
What approvals does this product have?
The brace terminal 01318 is approved under UL 508, UL, DNV GL, and carries type number 518. It also has a UL file number E123577 and UL category NMTR2 for the USA. No CCC certification is required.
Is the product environmentally friendly?
Yes, the brace terminal is halogen free, supporting safer use and disposal in line with environmental standards.
| Manufacturer Part Number | 01318 |
|---|---|
| Barcode | 4021267013189 |
| Height | 51mm |
| Width | 38mm |
| Depth | 70mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01318000 |
| Manufacturer | Wohner |
| Packed Quantity | 6 |
| Material | Tin |
| Busbar thickness | 10; 10 |
| Max. conductor cross section | 185 |
| Width clamp | 38mm |
| Max. rated operation current Ie | 300A |
| Busbar width | 20; 30 |
| Suitable Conductor Connection | Round Conductor, Sector Conductor |
