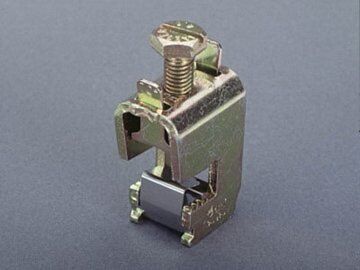

01292 Wohner universal conductor terminal
MPN: 01292
Alt. SKU: 01292000
Special Price
£2.05
£1.71
Regular Price
£2.57
Why Choose the Universal Conductor Terminal (01292)?
The universal conductor terminal 01292 is designed for reliable and versatile electrical connections, suitable for busbars and flat busbars up to 10 mm thickness. It supports conductor cross-sections from 16 to 70 mm² (AWG 6 - 2/0), making it adaptable for a wide range of industrial applications. Its integrated holding spring and captive clamping screw ensure secure and stable connections, while the opened terminal space facilitates easy installation and maintenance. Additionally, the terminal is halogen-free, supporting environmentally conscious installations.
Key Benefits
- Supports a wide conductor range from 16 to 70 mm², accommodating various cable sizes.
- Integrated holding spring and captive clamping screw provide secure and vibration-resistant connections.
- Opened terminal space allows for easy conductor insertion and inspection.
- Clear indication of nominal cross-section and tightening torque directly on the terminal for safe and accurate installation.
- Halogen-free construction enhances safety and environmental compliance.
- Complies with multiple approvals including UL 508, CSA, UL, and DNV GL for assured quality and safety.
- Compatible with systems such as 60Classic, 30Compact 3P, centre feed unit, and 100Energy.
Technical Specifications
- Item number: 01292
- Description: universal conductor terminal
- Rated current: 175 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 21 x 32 x 42 mm
- Weight: 7.5 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: 527
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the universal conductor terminal suitable for all types of busbars?
It is designed for flat busbars up to 10 mm thickness and section busbars, making it suitable for most common busbar applications.
Does this terminal carry current?
Yes, this is an electrical conductor terminal designed to carry current up to 175 A.
What materials is the terminal made from?
The specific material is not stated, but it is halogen-free, ensuring safer use in electrical installations.
Are there any certifications for this product?
Yes, it holds multiple approvals including UL 508, CSA, UL, and DNV GL certifications.
Where can I find technical drawings and CAD models?
Technical information, 3D CAD models, 2D symbols, and dimensioned drawings are available for download from the product page.
| Manufacturer Part Number | 01292 |
|---|---|
| Barcode | 4021267012922 |
| Height | 32mm |
| Width | 21mm |
| Depth | 42mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01292000 |
| Manufacturer | Wohner |
| Packed Quantity | 25 |
| Busbar thickness | 10; 10 |
| Max. conductor cross section | 70 |
| Width clamp | 21mm |
| Max. rated operation current Ie | 175A |
| Busbar width | 12; 120 |
| Suitable Conductor Connection | Strip Conductor, Round Conductor |
