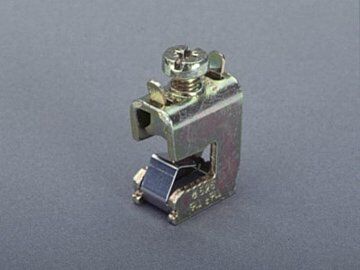

01290 Wohner universal conductor terminal
MPN: 01290
Alt. SKU: 01290000
Special Price
£1.98
£1.65
Regular Price
£2.47
Why Choose the Universal Conductor Terminal (01290)?
The universal conductor terminal 01290 is designed for reliable and efficient electrical connections. It supports conductor cross-sections from 4 to 35 mm² (AWG 12 - 2) and is compatible with flat busbars of 10 mm width. Featuring an integrated holding spring and a captive clamping screw, it ensures secure and stable connections while simplifying installation. The terminal also includes clear indications of nominal cross-section and tightening torque, enhancing safety and ease of use.
Key Benefits
- Supports a wide range of conductor sizes for versatile applications.
- Integrated holding spring provides secure conductor retention.
- Captive clamping screw prevents loss during installation.
- Open terminal space allows easy conductor insertion and inspection.
- Clear markings for nominal cross-section and tightening torque improve safety and accuracy.
- Halogen-free construction for environmentally conscious installations.
- Certified to multiple international standards including UL 508, CSA, and DNV GL.
Technical Specifications
- Item number: 01290
- Description: universal conductor terminal
- Rated current: 115 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 16 x 29 x 35 mm
- Weight: 4.7 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: type number: 526
- Approval: UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What conductor sizes are compatible with this terminal?
The universal conductor terminal supports conductor cross-sections from 4 to 35 mm², which corresponds to AWG sizes 12 to 2.
Can this terminal be used with flat busbars?
Yes, it is designed for use with flat busbars of 10 mm width.
Is the terminal halogen-free?
Yes, the terminal is manufactured using halogen-free materials, making it suitable for environmentally sensitive applications.
Does the terminal carry current?
Yes, this is an electrical terminal designed to carry current up to its rated capacity of 115 A.
What certifications does this product have?
The terminal is certified to UL 508, CSA, DNV GL standards, among others, ensuring compliance with international safety and quality requirements.
| Manufacturer Part Number | 01290 |
|---|---|
| Barcode | 4021267012908 |
| Height | 29mm |
| Width | 16mm |
| Depth | 35mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01290000 |
| Manufacturer | Wohner |
| Packed Quantity | 50 |
| Busbar thickness | 10; 10 |
| Max. conductor cross section | 35 |
| Width clamp | 16mm |
| Max. rated operation current Ie | 115A |
| Busbar width | 12; 120 |
| Suitable Conductor Connection | Strip Conductor, Round Conductor |
