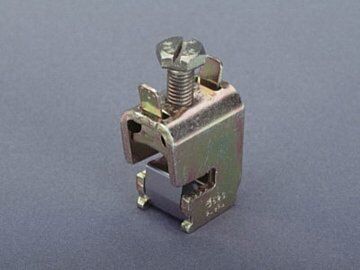

01287 Wohner universal conductor terminal
MPN: 01287
Alt. SKU: 01287000
Special Price
£2.32
£1.93
Regular Price
£2.89
Why Choose the Universal Conductor Terminal (01287)?
The universal conductor terminal 01287 is engineered for reliable and efficient electrical connections. Designed to accommodate conductor sizes from 16 to 70 mm² (AWG 6 - 2/0), it is compatible with flat busbars of 5 mm thickness. Featuring an integrated holding spring and a captive clamping screw, this terminal ensures secure and stable connections with ease of installation. Its open terminal space allows for straightforward conductor insertion, while clear indications of nominal cross-section and tightening torque enhance safety and precision during assembly.
Key Benefits
- Supports a wide range of conductor sizes for versatile applications.
- Integrated holding spring maintains conductor position for secure connections.
- Captive clamping screw prevents loss during installation and maintenance.
- Open terminal space simplifies conductor insertion and handling.
- Clear markings for nominal cross-section and tightening torque improve installation accuracy.
- Halogen-free materials contribute to safer and more environmentally friendly installations.
- Certified to multiple international standards including UL 508, CSA, and DNV GL, ensuring compliance and reliability.
Technical Specifications
- Item number: 01287
- Description: universal conductor terminal
- Rated current: 175 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 21 x 32 x 42 mm
- Weight: 7.1 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: type number: 523
- Approval: UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What conductor sizes does the universal conductor terminal support?
It supports conductor sizes from 16 to 70 mm², equivalent to AWG 6 to 2/0.
Is the terminal suitable for use with flat busbars?
Yes, it is designed for flat busbars with a thickness of 5 mm.
Does the terminal carry current directly?
Yes, as an electrical conductor terminal, it is designed to carry current safely and efficiently.
What certifications does this product have?
The terminal is certified to UL 508, CSA, and DNV GL standards, among others.
Is the product halogen-free?
Yes, the terminal is made from halogen-free materials, enhancing safety and environmental compliance.
| Manufacturer Part Number | 01287 |
|---|---|
| Barcode | 4021267012878 |
| Height | 32mm |
| Width | 21mm |
| Depth | 42mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01287000 |
| Manufacturer | Wohner |
| Packed Quantity | 25 |
| Busbar thickness | 5; 5 |
| Max. conductor cross section | 70 |
| Width clamp | 21mm |
| Max. rated operation current Ie | 175A |
| Busbar width | 12; 120 |
| Suitable Conductor Connection | Strip Conductor, Round Conductor |
