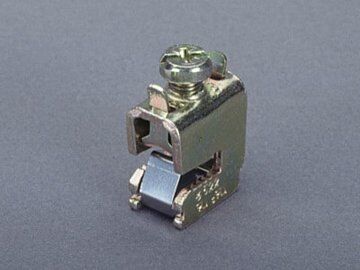

01285 Wohner universal conductor terminal
MPN: 01285
Alt. SKU: 01285000
Special Price
£2.02
£1.68
Regular Price
£2.52
Why Choose the Universal Conductor Terminal (01285)?
The universal conductor terminal 01285 is designed for reliable and efficient electrical connections in industrial applications. It supports conductor cross-sections from 4 to 35 mm² (AWG 12 - 2) and is compatible with flat busbars of 5 mm thickness. Featuring an integrated holding spring and captive clamping screw, this terminal ensures secure and stable connections while simplifying installation. Clear markings for nominal cross-section and tightening torque enhance usability and safety.
Key Benefits
- Integrated holding spring for secure conductor retention
- Captive clamping screw prevents loss during installation
- Open terminal space facilitates easy conductor insertion
- Clear indication of nominal cross-section and tightening torque
- Compatible with 5 mm flat busbars for versatile system integration
- Halogen free materials for environmentally conscious applications
- Certified to UL 508, CSA, UL, and DNV GL standards ensuring high quality and safety
Technical Specifications
- Item number: 01285
- Description: universal conductor terminal
- Rated current: 115 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 16 x 29 x 36 mm
- Weight: 4.6 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: type number: 522
- Approval: UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What conductor sizes are compatible with this terminal?
The universal conductor terminal supports conductor cross-sections from 4 to 35 mm², which corresponds to AWG sizes 12 to 2.
Can this terminal be used with flat busbars?
Yes, it is designed specifically for use with flat busbars of 5 mm thickness.
Does this terminal carry current?
Yes, this is an electrical terminal designed to carry current up to 115 A.
Is the terminal halogen free?
Yes, the materials used in this terminal are halogen free, making it suitable for environmentally conscious installations.
What certifications does this product have?
The terminal is certified to UL 508, CSA, UL, and DNV GL standards, ensuring compliance with international safety and quality requirements.
| Manufacturer Part Number | 01285 |
|---|---|
| Barcode | 4021267012854 |
| Height | 29mm |
| Width | 16mm |
| Depth | 36mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01285000 |
| Manufacturer | Wohner |
| Packed Quantity | 50 |
| Busbar thickness | 5; 5 |
| Max. conductor cross section | 35 |
| Width clamp | 16mm |
| Max. rated operation current Ie | 115A |
| Busbar width | 12; 120 |
| Suitable Conductor Connection | Strip Conductor, Round Conductor |
