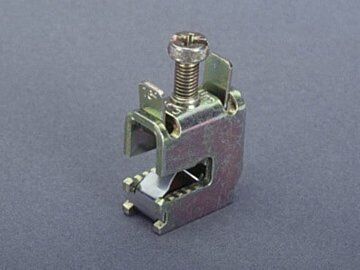

01284 Wohner universal conductor terminal
MPN: 01284
Alt. SKU: 01284000
Special Price
£1.60
£1.33
Regular Price
£1.99
Why Choose the Universal Conductor Terminal (01284)?
The universal conductor terminal 01284 is designed for reliable and efficient electrical connections. Suitable for conductor cross-sections from 1.5 to 16 mm² (AWG 16 - 6), it is compatible with flat busbars of 5 mm thickness. This terminal features an integrated holding spring, captive clamping screw, and an open terminal space to facilitate easy installation and maintenance. Clear indication of the nominal cross-section and tightening torque ensures precise and safe connections. Halogen-free construction supports environmentally conscious installations.
Key Benefits
- Supports a wide range of conductor sizes, enhancing versatility.
- Integrated holding spring and captive clamping screw improve connection stability and safety.
- Open terminal space allows for straightforward wiring and inspection.
- Clear markings for nominal cross-section and tightening torque reduce installation errors.
- Halogen-free materials contribute to safer and more sustainable electrical systems.
- Certified to multiple international standards including UL 508, CSA, and DNV GL, ensuring compliance and quality assurance.
Technical Specifications
- Item number: 01284
- Description: universal conductor terminal
- Rated current: 65 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 12 x 23 x 25 mm
- Weight: 2.1 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: type number: 521
- Approval: UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What conductor sizes are compatible with this terminal?
The universal conductor terminal supports conductor cross-sections from 1.5 to 16 mm², equivalent to AWG sizes 16 to 6.
Is this terminal suitable for use with busbars?
Yes, it is designed for use with flat busbars of 5 mm thickness.
Does this terminal carry current?
Yes, this is an electrical terminal designed to carry current up to 65 A.
Are there any environmental considerations for this product?
Yes, the terminal is halogen free, supporting safer and more environmentally friendly installations.
What certifications does this terminal have?
It is approved under UL 508, CSA, UL, and DNV GL standards, among others.
| Manufacturer Part Number | 01284 |
|---|---|
| Barcode | 4021267012847 |
| Height | 23mm |
| Width | 12mm |
| Depth | 25mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01284000 |
| Manufacturer | Wohner |
| Packed Quantity | 100 |
| Busbar thickness | 5; 5 |
| Max. conductor cross section | 16 |
| Width clamp | 12mm |
| Max. rated operation current Ie | 65A |
| Busbar width | 12; 120 |
| Suitable Conductor Connection | Strip Conductor, Round Conductor |
