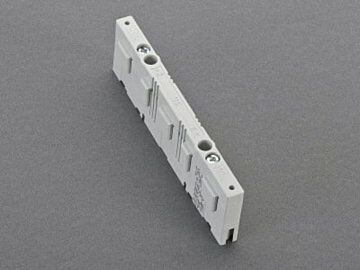

01272 Wohner busbar support 3 phases + N + E, with end cover
MPN: 01272
Alt. SKU: 01272000
Special Price
£12.00
£10.00
Regular Price
£15.00
Why Choose the Busbar Support 3 Phases + N + E with End Cover (01272)?
This busbar support is designed specifically for 3-phase busbars with neutral and earth conductors, providing a secure and reliable mounting solution. Compatible with 3-pole and 5-pole busbars of sizes 12 x 5 and 12 x 10, it ensures optimal stability and protection. The inclusion of an end cover enhances safety by preventing accidental contact and contamination. Manufactured to meet stringent UL 508 standards, this mechanical support is halogen free and suitable for use in systems operating at up to 600 V AC and frequencies of 50/60 Hz.
Key Benefits
- Robust mechanical support for 3-phase plus neutral and earth busbars
- Compatible with multiple busbar configurations: 3-pole and 5-pole, 12 x 5 and 12 x 10 mm
- Includes end cover for enhanced safety and protection
- Halogen free material ensures environmentally friendly installation
- Approved to UL 508 standards for reliable industrial use
- Lightweight design with a weight of 6.8 kg per 100 units for easy handling
- Does not carry current as a mechanical support component
Technical Specifications
- Item number: 01272
- Description: busbar support 3 phases + N + E, with end cover
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 15 x 156 x 45 mm
- Weight: 6.8 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: S612-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is this busbar support suitable for carrying electrical current?
No, this is a mechanical busbar support designed to provide physical support and does not carry electrical current.
What busbar sizes are compatible with this support?
It is compatible with 3-pole and 5-pole busbars sized 12 x 5 mm and 12 x 10 mm, including neutral and protective earth conductors.
Does this product meet any safety approvals?
Yes, it is UL 508 approved and suitable for UL feeder circuits above 250 V, with specific UL file numbers for USA and Canada.
Is the material halogen free?
Yes, the busbar support is made from halogen free materials, ensuring safer and more environmentally friendly installations.
Where can I find mounting instructions and technical documentation?
Mounting instructions and various technical documents, including CAD models and dimensioned drawings, are available for download from the manufacturer's website.
| Manufacturer Part Number | 01272 |
|---|---|
| Barcode | 4021267012724 |
| Height | 156mm |
| Width | 15mm |
| Depth | 45mm |
| Country of Manufacture | Germany |
| HS Code | 85469010 |
| Alternative Product SKU | 01272000 |
| Manufacturer | Wohner |
| Packed Quantity | 10 |
| Number of Poles | 3 pole |
| Busbar distance | 60mm |
