01243 Wohner connection terminal plate, 3-pole
MPN: 01243
Alt. SKU: 01243000
Special Price
£37.68
£31.40
Regular Price
£47.09

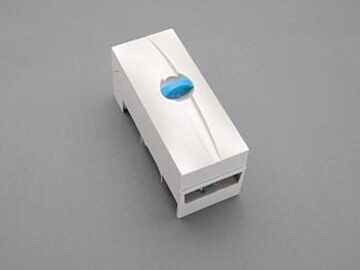

Connection Terminal Plate, 3-Pole (01243)
The 3-pole connection terminal plate (Part No.: 01243 000) from the 60Classic system is designed for efficient and reliable electrical connections. Suitable for busbars sized 12, 15, 20, 25, 30 x 5, 10 and section busbars, it supports conductor cross-sections from 10 to 120 mm² (AWG 6 - 250 MCM) with laminated copper. This terminal plate is halogen-free and meets multiple international approvals, ensuring safety and compliance.
Why Choose the 3-Pole Connection Terminal Plate?
- Supports a wide range of conductor sizes for versatile applications.
- Terminals can be removed to allow connection of uncut conductors, simplifying installation.
- Compatible with various busbar sizes, enhancing system flexibility.
- Halogen-free construction contributes to safer and more environmentally friendly installations.
- Certified to UL 508, CSA, and DNV GL standards, ensuring high reliability and safety.
Key Benefits
- High rated current capacity of 250 A suitable for demanding electrical systems.
- Rated for 600 V AC and suitable for 50/60 Hz frequency operation.
- Robust mechanical design with dimensions of 81 x 200 x 84 mm and a weight of 53.5 kg per 100 units.
- Multiple approvals including UL and CSA facilitate use in North American and international markets.
- Easy integration into existing 60Classic systems for streamlined installation and maintenance.
Technical Specifications
- Item number: 01243
- Description: connection terminal plate, 3-pole
- Rated current: 250 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 81 x 200 x 84 mm
- Weight: 53.5 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: 243-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Can the terminals be removed for connecting uncut conductors?
Yes, the terminals are designed to be removable, allowing easy connection of uncut conductors.
Is this terminal plate suitable for use with laminated copper conductors?
Yes, it supports laminated copper conductors with cross-sections from 10 to 120 mm².
What busbar sizes are compatible with this terminal plate?
The terminal plate is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 and section busbars.
Does this product carry current directly?
This is a mechanical connection terminal plate designed to facilitate connections; it does not itself carry current but ensures secure electrical connections.
Is the product halogen-free?
Yes, the terminal plate is halogen-free, supporting safer and more environmentally responsible installations.
| Manufacturer Part Number | 01243 |
|---|---|
| Barcode | 4021267012434 |
| Height | 200mm |
| Width | 81mm |
| Depth | 84mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01243000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Number of Poles | 3 Pole |
| Busbar thickness | 5; 10 |
| Max. conductor cross section | 150 |
| Width clamp | 81mm |
| Max. rated operation current Ie | 250A |
| Busbar width | 12; 30 |
| Suitable Conductor Connection | Strip Conductor, Round Conductor |
