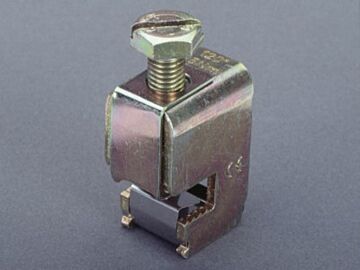

01203 Wohner universal conductor terminal
MPN: 01203
Alt. SKU: 01203000
Special Price
£3.76
£3.13
Regular Price
£4.69
Why Choose the Universal Conductor Terminal (01203)?
The Universal Conductor Terminal (01203) is designed to provide reliable and secure electrical connections for a wide range of conductor sizes, from 16 to 120 mm² (AWG 6 - 250 MCM). Its compatibility with flat and section busbars, including 10 mm flat busbars, makes it a versatile choice for various busbar systems such as 60Classic, 30Compact 3P centre feed unit, and 100Energy. Featuring an integrated holding spring and captive clamping screw, this terminal ensures ease of installation and maintenance while maintaining a secure connection.
Key Benefits
- Integrated holding spring for secure conductor retention
- Captive clamping screw prevents loss during installation
- Opened terminal space facilitates easy conductor insertion
- Clear indication of nominal cross-section and tightening torque on the terminal
- Halogen-free construction supports environmentally responsible installations
- Wide approval range including UL 508, CSA, and DNV GL ensures compliance with international standards
- Suitable for rated currents up to 255 A and voltages up to 600 V AC
Technical Specifications
- Item number: 01203
- Description: universal conductor terminal
- Rated current: 255 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 24 x 36 x 55 mm
- Weight: 10.9 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: 528
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What conductor sizes are compatible with this terminal?
The universal conductor terminal supports conductor sizes from 16 to 120 mm², equivalent to AWG 6 to 250 MCM.
Is the terminal suitable for use with busbars?
Yes, it is designed for use with flat busbars of 10 mm thickness and section busbars, compatible with various busbar systems.
Does this terminal carry current directly?
Yes, as an electrical conductor terminal, it is designed to carry electrical current safely and efficiently.
Is the product environmentally friendly?
Yes, the terminal is halogen-free, supporting environmentally responsible installations.
What certifications does this terminal have?
It holds multiple approvals including UL 508, CSA, UL, and DNV GL certifications, ensuring compliance with international safety standards.
| Manufacturer Part Number | 01203 |
|---|---|
| Barcode | 4021267012038 |
| Height | 36mm |
| Width | 24mm |
| Depth | 55mm |
| Country of Manufacture | Germany |
| HS Code | 85369010 |
| Alternative Product SKU | 01203000 |
| Manufacturer | Wohner |
| Packed Quantity | 25 |
| Busbar thickness | 10; 10 |
| Max. conductor cross section | 120 |
| Width clamp | 24mm |
| Max. rated operation current Ie | 250A |
| Busbar width | 12; 120 |
| Suitable Conductor Connection | Strip Conductor, Round Conductor |
