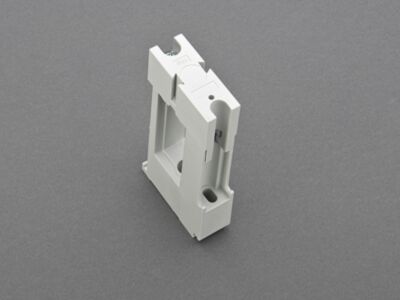

01132 Wohner busbar support
MPN: 01132
Alt. SKU: 01132000
Special Price
£24.43
£20.36
Regular Price
£30.54
Why Choose the Busbar Support (01132)?
The busbar support (01132) is designed for reliable and secure mounting of busbars with a triple-T section. It is a 1-pole mechanical component intended to be attached to the 01232 and can be individually mounted. This product is ideal as a centre support, featuring internal screw holes for easy installation. It also offers compatibility with the 3-pole busbar support 01232, providing flexibility in system design. Being halogen free and UL 508 approved, it meets stringent safety and environmental standards.
Key Benefits
- Robust mechanical support for triple-T section busbars
- Suitable as centre support with internal screw holes for secure attachment
- Compatible with 3-pole busbar support 01232 for versatile mounting options
- Halogen free material ensures environmental safety
- UL 508 and DNV GL approvals guarantee compliance with international standards
- Designed for use in systems operating at 600 V AC and 50/60 Hz frequency
- Mechanical product – does not carry current
Technical Specifications
- Item number: 01132
- Description: busbar support
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 26 x 73 x 141 mm
- Weight: 15.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: S645-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the busbar support (01132) suitable for carrying electrical current?
No, the busbar support (01132) is a mechanical component designed to support busbars and does not carry electrical current.
Can this busbar support be used with other busbar supports?
Yes, it can be used as a centre support and is compatible for connection with the 3-pole busbar support 01232.
What approvals does this product have?
The busbar support (01132) is approved under UL 508, UL, DNV GL, and is suitable for UL feeder circuits above 250V. It also holds a UL file E123577 and is categorised under NMTR for the USA.
Is the product environmentally friendly?
Yes, the busbar support is halogen free, supporting environmentally responsible installations.
| Manufacturer Part Number | 01132 |
|---|---|
| Barcode | 4021267011321 |
| Height | 73mm |
| Width | 26mm |
| Depth | 141mm |
| Country of Manufacture | Germany |
| HS Code | 85469010 |
| Alternative Product SKU | 01132000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
| Number of Poles | 1 pole |
