01075 Wohner flexible copper busbar, tinned, insulated
MPN: 01075
Alt. SKU: 01075000
£138.02
£115.02

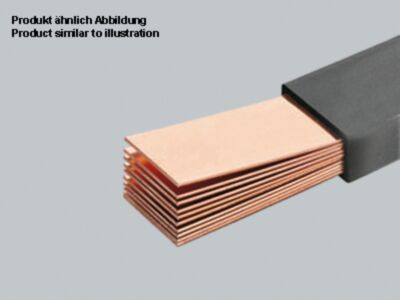

Flexible Copper Busbar, Tinned, Insulated (01075)
Part No.: 01075 000
This flexible copper busbar is tinned and insulated, designed to provide reliable and efficient electrical connections in industrial applications. Measuring 28 x 9 x 2000 mm, it is halogen free and carries multiple UL approvals, ensuring safety and compliance. Please note, as a mechanical product, this busbar does not carry current itself but serves as a conductor in electrical systems.
Why Choose This Flexible Copper Busbar?
- Tin-plated copper bars significantly reduce the effort required to prepare contact points.
- Effective protection against aggressive media due to tin plating and insulation.
- Halogen-free construction supports environmentally conscious installations.
- Comprehensive UL approvals for use in feeder circuits above 250V.
- Robust dimensions and weight ensure durability and stability in demanding environments.
Key Benefits
- Enhanced corrosion resistance through tin plating.
- Flexible design allows for easy installation in complex electrical assemblies.
- Insulation improves safety by reducing risk of accidental contact and short circuits.
- Compliance with multiple UL standards guarantees quality and reliability.
- Halogen-free material supports safer fire behaviour and environmental standards.
Technical Specifications
- Item number: 01075
- Description: flexible copper busbar, tinned, insulated
- Dimensions (W x H x D): 28 x 9 x 2000 mm
- Weight: 225.0 kg/100
- Halogen free: Yes
- Approval: UL 758
- Approval: UL 67
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: 5x24x1
- Approval: UL file: E197039, UL category (for USA): QEUY2 https://www.ul.com
- Approval: UL file 2: E481423, UL category+ (for USA): AVLV2 https://www.ul.com
- Approval: UL file: E197039, UL category (for Canada): QEUY8 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is this busbar suitable for high current applications?
Yes, the flexible copper busbar is designed to handle high current loads effectively, with a current rating of 494 A.
Does this busbar carry current directly?
As a mechanical product, the busbar itself does not carry current but serves as a conductor within an electrical system.
What are the benefits of the tin plating on the copper busbar?
Tin plating reduces oxidation and corrosion, making contact preparation easier and extending the lifespan of the busbar.
Is the product environmentally friendly?
Yes, it is halogen free, supporting safer fire behaviour and reduced environmental impact.
What certifications does this product have?
It holds multiple UL approvals including UL 758 and UL 67, suitable for feeder circuits above 250V, and does not require CCC certification.
| Manufacturer Part Number | 01075 |
|---|---|
| Barcode | 4021267010751 |
| Height | 9mm |
| Width | 28mm |
| Depth | 2000mm |
| Country of Manufacture | France |
| HS Code | 85446010 |
| Alternative Product SKU | 01075000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Material | Copper |
| Device type | Lamellated |
| Flexible | Yes |
