01063 Wohner flexible copper busbar, tinned, insulated
MPN: 01063
Alt. SKU: 01063000
£138.02
£115.02

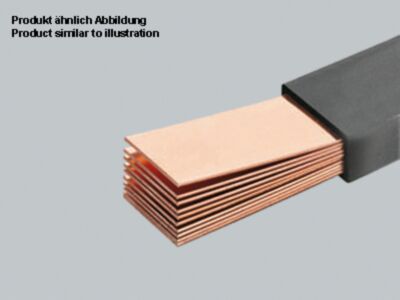

Flexible Copper Busbar, Tinned, Insulated (01063)
Part No.: 01063 000
This flexible copper busbar is tinned and insulated, designed for efficient and reliable electrical connections. Measuring 24 x 10 x 2000 mm, it is halogen free and carries a weight of 225.0 kg per 100 units. Although mechanical in nature and not carrying current itself, this busbar is essential for conducting electrical current safely and effectively in various industrial applications.
Why Choose This Flexible Copper Busbar?
- Tin-plated copper bars significantly reduce the effort required to prepare contact points.
- Effective protection against aggressive media ensures durability and longevity.
- Complies with multiple UL approvals, ensuring high safety and quality standards.
- Halogen free construction supports environmentally conscious installations.
- Flexible design allows for easy installation in complex electrical systems.
Key Benefits
- Enhanced corrosion resistance due to tin plating.
- Insulation improves safety by preventing accidental contact and short circuits.
- Suitable for UL feeder circuits operating above 250V.
- Lightweight and flexible, facilitating easier handling and installation.
- Certified under UL 758, UL 67, and other relevant standards for assured quality.
Technical Specifications
- Item number: 01063
- Description: flexible copper busbar, tinned, insulated
- Dimensions (W x H x D): 24 x 10 x 2000 mm
- Weight: 225.0 kg/100
- Halogen free: Yes
- Approval: UL 758
- Approval: UL 67
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: 6x20x1
- Approval: UL file: E197039, UL category (for USA): QEUY2 https://www.ul.com
- Approval: UL file 2: E481423, UL category+ (for USA): AVLV2 https://www.ul.com
- Approval: UL file: E197039, UL category (for Canada): QEUY8 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
Does this busbar carry electrical current?
As a mechanical product, the flexible copper busbar itself does not carry current but serves as a conductor for electrical connections.
What are the advantages of tin plating on the copper busbar?
Tin plating reduces the effort needed to prepare contact points and provides effective protection against corrosion and aggressive media.
Is this product suitable for high voltage applications?
Yes, it is approved for UL feeder circuits operating above 250V.
Is the product environmentally friendly?
Yes, it is halogen free, making it suitable for environmentally conscious installations.
Where can I find technical documentation and CAD data?
Technical information, data packets, and CAD files are available through the provided download links on the product page.
| Manufacturer Part Number | 01063 |
|---|---|
| Barcode | 4021267010638 |
| Height | 10mm |
| Width | 24mm |
| Depth | 2000mm |
| Country of Manufacture | France |
| HS Code | 85446010 |
| Alternative Product SKU | 01063000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Material | Copper |
| Device type | Lamellated |
| Flexible | Yes |
