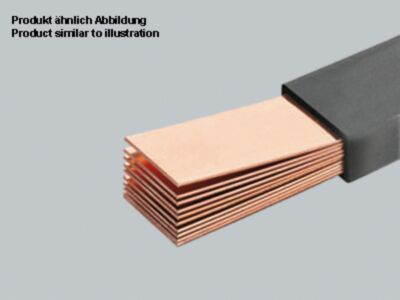

Flexible Copper Busbar, Plain, Insulated (01035)

Part No.: 01035 000

A laminated flexible copper busbar designed to simplify electrical connections with its insulated, plain design. Measuring 6 x 15.5 x 0.8 mm and rated for 350 A with a length of 2 m, this busbar is ideal for efficient and safe power distribution.

Why Choose This Flexible Copper Busbar?

• Reduces installation effort by eliminating the need for bending devices required for solid copper busbars.
• Features a 2 mm thick insulation layer, removing the need for additional covering and enhancing safety.
• Halogen-free construction supports environmentally friendly applications.
• Complies with multiple UL approvals ensuring high standards of quality and safety.
• Mechanical product that does not carry current directly but facilitates current flow through connection.

Key Benefits

• Flexible laminated copper layers improve ease of handling and installation.
• Insulated design enhances protection against electrical faults and mechanical damage.
• Certified for use in UL feeder circuits above 250 V, suitable for demanding industrial environments.
• Robust and reliable, ensuring long-term performance in power distribution systems.

Technical Specifications

• Item number: 01035
• Description: flexible copper busbar, plain, insulated
• Dimensions (W x H x D): 20 x 9 x 2000 mm
• Weight: 139.2 kg/100
• Halogen free: Yes
• Approval: UL 758
• Approval: UL 67
• Approval: UL
• Approval: for UL feeder circuits >250V
• Approval: type number: 6x15,5x0,8
• Approval: UL file: E197039, UL category (for USA): QEUY2 https://www.ul.com
• Approval: UL file 2: E481423, UL category+ (for USA): AVLV2 https://www.ul.com
• Approval: UL file: E197039, UL category (for Canada): QEUY8 https://www.ul.com
• Approval: CCC approval: no certification required
