01026 Wohner mount for busbar section cover
MPN: 01026
Alt. SKU: 01026000
Special Price
£6.44
£5.37
Regular Price
£8.05
Why Choose the Mount for Busbar Section Cover (01026)?

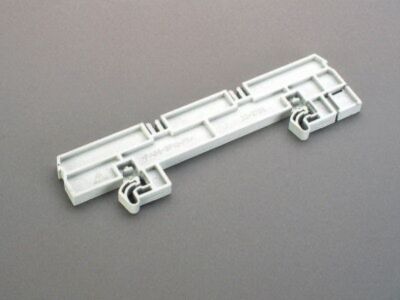

The mount for busbar section cover (Part No.: 01026 000) is an essential mechanical component designed specifically for the 60Classic system. It provides secure and reliable support for busbar section covers, ensuring optimal protection and organisation of busbars. With a compact depth of 32 mm and dimensions of 9 x 196 x 32 mm, this mount is compatible with various busbar sizes including 12, 15, 20, 25, 30 x 5, 10 mm and section busbars. Its halogen-free construction promotes safety and environmental responsibility.
Key Benefits
- Designed for seamless integration with the 60Classic busbar system.
- Compatible with multiple busbar sizes for versatile application.
- Halogen-free material enhances safety and reduces environmental impact.
- Certified to meet stringent UL 508, CSA, and DNV GL standards.
- Lightweight design at 3.9 kg per 100 units facilitates easy handling and installation.
- Mechanical product that does not carry current, ensuring safe mounting of busbar covers.
Technical Specifications
- Item number: 01026
- Description: mount for busbar section cover
- Dimensions (W x H x D): 9 x 196 x 32 mm
- Weight: 3.9 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: C026-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the mount suitable for all busbar sizes?
The mount is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars, making it versatile for various installations.
Does this product carry electrical current?
No, this is a mechanical mount designed to support busbar covers and does not carry any electrical current.
Is the mount environmentally friendly?
Yes, the mount is halogen-free, supporting safer and more environmentally responsible installations.
What certifications does this product have?
It holds multiple approvals including UL 508, CSA, DNV GL, and is certified for UL feeder circuits above 250V.
Where can I find technical documentation?
Technical documents such as CAD models, dimensioned drawings, and EU declarations of conformity are available for download.
| Manufacturer Part Number | 01026 |
|---|---|
| Barcode | 4021267010263 |
| Height | 196mm |
| Width | 9mm |
| Depth | 32mm |
| Country of Manufacture | Germany |
| HS Code | 85472000 |
| Alternative Product SKU | 01026000 |
| Manufacturer | Wohner |
| Packed Quantity | 10 |
| Accessory Type | Cover |
| Material | Copper |
| Amperage | 36A |
