BF26T0D110 - 4P CONTACTOR NC 45A AC1 110VDC
MPN: BF26T0D110
Special Price
£162.66
£135.55
Regular Price
£271.09
Why Choose the BF26T0D110?

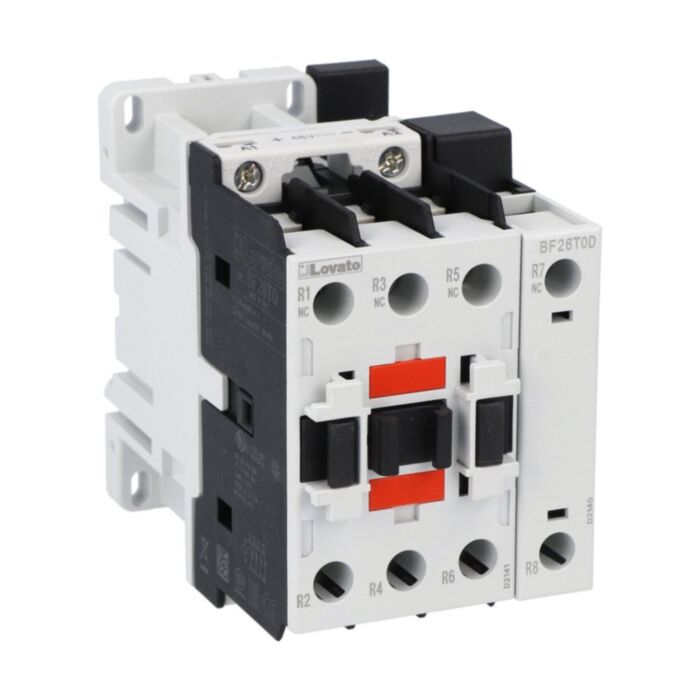

The Lovato BF26T0D110 four‑pole contactor (4NC) delivers dependable power switching for control panels and machinery. With a 110 V DC coil and 45 A AC‑1 Ith, it suits general‑purpose loads and isolation duties. Rated Ui 690 V and Uimp 6 kV, the BF26T0D110 combines robust electrical performance with compact installation flexibility via screw fixings or 35 mm DIN rail.
Engineered for longevity, it offers a 20,000,000‑cycle mechanical life and operates from −50 to 70 °C, up to 3000 m altitude, Pollution Degree 3. Certified to IEC/EN/BS 60947 and UL/CSA standards, and rated 15 HP at 480 V (UL/CSA), this Lovato BF26 series device ensures secure terminations with 2.5–3 Nm torque and a reliable 660 g build for demanding environments.
Key Benefits
- Four-pole 4NC configuration for dependable isolation and control.
- 110 V DC coil for straightforward integration with DC control circuits.
- 45 A AC-1 Ith handles robust general-purpose switching duties.
- Rated Ui 690 V and Uimp 6 kV for high insulation performance.
- Flexible screw or 35 mm DIN rail mounting reduces installation time.
- Long 20,000,000-cycle mechanical life lowers maintenance intervals.
- UL/CSA 15 HP at 480 V supports suitable motor control applications.
- Sustainability certification supports responsible procurement and compliance goals.
Technical Specification
- Product type designation: BF26
- Number of poles: 4
- Rated insulation voltage Ui (IEC/EN): 690 V
- Rated impulse withstand voltage Uimp: 6 kV
- Ith (IEC): 45 A
- Terminal tightening torque: 2.5 to 3 Nm
- Weight: 660 g
- Mechanical life: 20000000 cycles
- Operating temperature: -50 to 70 °C
- Storage temperature: -60 to 80 °C
- Max altitude: 3000 m
- Pollution degree: 3
What’s Included
- Lovato BF26T0D110 four-pole contactor (4NC)
- Manufacturer datasheet
- Basic installation instructions
- Protective packaging
Applications
- General AC-1 power switching up to 45 A Ith
- Motor starters and control circuits up to 15 HP at 480 V (UL/CSA)
- Control and isolation in industrial panels with 110 V DC coils
- Systems requiring 4NC contactor functionality and reliable insulation
- Panels using screw or 35 mm DIN rail mounting
Frequently Asked Questions
What coil voltage does the BF26T0D110 require?
It uses a 110 V DC coil.
How many poles and what is the contact arrangement?
It is a four-pole contactor with a 4NC configuration.
What is the AC-1 current rating?
It has an IEC AC-1 Ith of 45 A.
How can this contactor be mounted?
It mounts via screws or on a 35 mm DIN rail.
Which standards does it comply with?
IEC/EN/BS 60947-1 and 60947-4-1, UL 60947-1/-4-1, and CSA equivalents.
Safety note: Always isolate supply before installation or maintenance. Fit and tighten terminals to the manufacturer’s guidance, and have commissioning performed by a qualified electrician in accordance with applicable standards.
| Manufacturer Part Number | BF26T0D110 |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975167342 |
| Coil Voltage | 110VDC |
