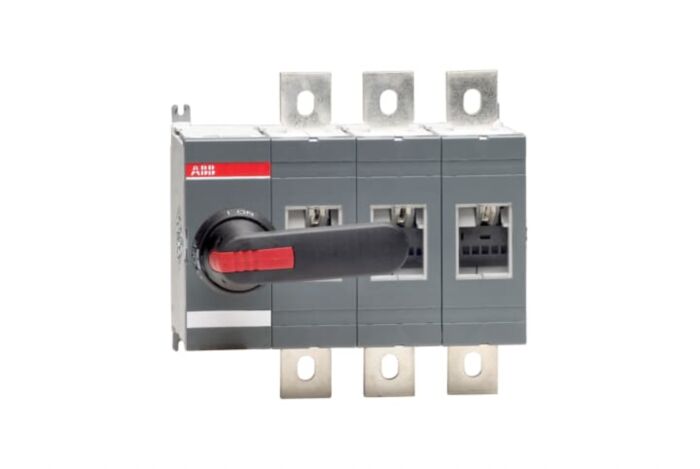

1SCA162995R1001 ABB OTHV800E03P 3 Pole 800VAC to 1000VAC 800A Switch Disconnector
MPN: 1SCA162995R1001
Alt. SKU: OTHV800E03P
Why Choose the OTHV800E03P [1SCA162995R1001]
The OTHV-series 3-pole front-operated base-mounted switch disconnector is designed for use in 800 to 1000 VAC systems. It features a robust shaft and handle, both included, ensuring reliable manual operation and straightforward installation in industrial and commercial electrical installations.
Technical Specification
- Function: 3-pole front operated base mounted switch disconnector.
- Rated Operational Voltage: Up to 1000 V AC.
- Conventional Thermal Current (Ith): 800 A.
- Rated Short-Circuit Making Capacity (Icm): 80 kA at 1000 V.
- Rated Short-time Withstand Current (Icw): 20 kA for 1 s.
- Contact Configuration: 3 poles (3P).
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Degree of Protection: Front IP00.
- Terminal Type: Lug terminals, 39 mm width.
- Mechanical Durability: 10,000 operations.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational voltage of the OTHV-series switch disconnector?
The rated operational voltage is up to 1000 V AC.
What is the conventional thermal current (Ith) rating?
The conventional thermal current (Ith) is 800 A.
What is the rated short-circuit making capacity (Icm) of the device?
The rated short-circuit making capacity (Icm) is 80 kA at 1000 V.
How many mechanical operations can the switch disconnector endure?
The mechanical durability is rated for 10,000 operations.
What type of terminals does the OTHV-series switch disconnector use?
It uses lug terminals with a width of 39 mm.
What is the degree of protection for this switch disconnector?
The degree of protection is Front IP00.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Alternative Product SKU | OTHV800E03P |
|---|---|
| Manufacturer Part Number | 1SCA162995R1001 |
| Manufacturer | ABB |
| Barcode | 6417019929477 |
| Number of Poles | 3 Pole |
| Max. rated operation voltage Ue AC | 1000V |
| Number of switches | 1 |
| Rated operating voltage | 1000V |
| Device construction | Complete device in housing |
| Suitable for distribution board installation | Yes |
| Type of control element | Other |
| Colour control element | Black |
| Rated permanent current Iu | 800A |
| Voltage | 800-1000VAC |
| Degree of protection (IP) | IP00 |
| Degree of protection (NEMA) | Other |
| Type of electric connection | Bolt connection |
| Packed Quantity | 1 |
| Height | 250mm |
| Width | 266mm |
| Depth | 140mm |
| HS Code | 85365080 |
| Country of Manufacture | Finland |
